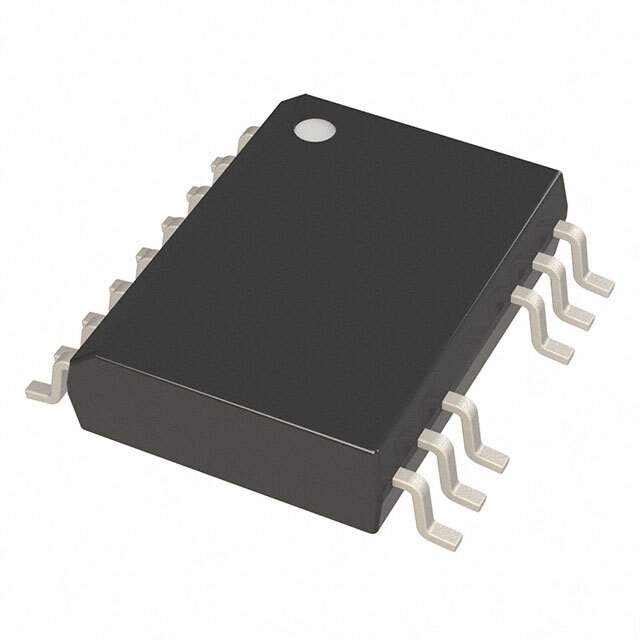

The UCC21320QDWKQ1 is a robust, automotive-qualified gate driver designed by Texas Instruments to provide efficient and reliable control of IGBTs and power MOSFETs. This gate driver is specifically engineered to meet the stringent requirements of the automotive industry, making it an excellent choice for power control in vehicle applications.

Key Features

• High Isolation: With an integrated high-voltage isolation barrier, the UCC21320QDWKQ1 ensures safe operation by preventing high voltages from reaching the low voltage control side, thus protecting the system and the user.
• Dual-Channel Output: The device features dual-channel outputs that can be configured for either two high-side, two low-side, or a high-side and low-side driver, providing versatility for different circuit topologies.
• Robustness: Designed for harsh automotive environments, it offers reinforced isolation and is rated for temperatures ranging from -40°C to +125°C, ensuring reliable performance under extreme conditions.
• Advanced Protection: The UCC21320QDWKQ1 includes under-voltage lockout, over-temperature shutdown, and fault reporting for enhanced system protection and reliability.
• Fast Propagation Delays: It boasts fast and matched propagation delays, which help in achieving high switching frequencies and better efficiency in power converters.

Applications

The UCC21320QDWKQ1 is suitable for a wide range of automotive applications, including:

• Electric and Hybrid Electric Vehicle (EV/HEV) Powertrain Systems
• Automotive Power Supplies
• DC/DC Converters
• On-Board Chargers and Charging Stations
• Powertrain Inverters

Quality and Reliability

Texas Instruments is known for its commitment to quality and reliability, and the UCC21320QDWKQ1 is no exception. Manufactured to meet the high standards of the automotive industry, this gate driver is AEC-Q100 qualified, ensuring it meets the reliability requirements for automotive applications.
