Same model may have multiple batches, images only for reference.

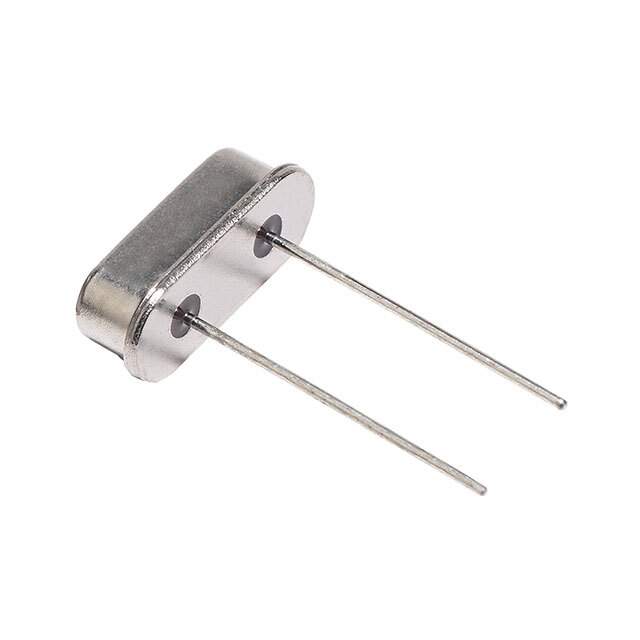

LFXTAL003336BULK Real Image
Same model may have multiple batches, images only for reference.

LFXTAL003336BULK

Part No LFXTAL003336BULK
Manufacturer IQD Frequency Products Ltd
Catalog Oscillators
Description CRYSTAL 7.3728MHZ 18PF TH / 7.3728 MHz ±15ppm Crystal 18pF 60 Ohms HC-49/US
Datasheet
LFXTAL003336BULK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr IQD Frequency Products
Series HC49/4H
Package Bulk
Type MHz Crystal
Frequency 7.3728 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±15ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 60°C
Mounting Type Through Hole
Package / Case HC-49/US
Dimension 0.435" L x 0.183" W (11.05mm x 4.65mm)
Height - Seated (Max) 0.161" (4.10mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Other Names 1923-1439
Standard Package 100
Win Source Part Number 1033494-LFXTAL003336BULK
Ultra Librarian 3D Model Ultra Librarian LFXTAL003336BULK CAD Model

Description

The LFXTAL003336BULK is a MHz crystal manufactured by IQD Frequency Products.

  • Category: Crystals, Oscillators, and Resonators
  • Frequency: 7.3728 MHz
  • Frequency Tolerance: ±15ppm
  • Load Capacitance: 18pF
  • ESR (Equivalent Series Resistance): 60 Ohms
  • Package: HC-49/US
  • Mounting Type: Through-Hole
  • Temperature Range: -10°C to 60°C
  • Dimensions: 0.435" L x 0.183" W (11.05mm x 4.65mm)
  • Cross-Reference Alternative Parts: LFXTAL003336BULKLF XTAL003336BULK
