Overview of TUSB542RWQR by Texas Instruments

The TUSB542RWQR from Texas Instruments is a high-performance, dual-channel USB 3.2 Gen 1 redriver and signal conditioner designed to enhance signal quality by performing receive equalization on the deteriorated input signal followed by transmit de-emphasis, maximizing system link performance. This product is essential for applications requiring extended cable length or those using connectors that introduce signal disturbances, ensuring reliable communication and data integrity.

Key Features

• USB 3.2 Gen 1 Compatible: The TUSB542RWQR supports data rates up to 5 Gbps, making it suitable for USB 3.2 Gen 1 applications.
• Dual Channel: Two bidirectional lanes are provided, which can be independently configured for different levels of signal conditioning.
• Adaptive Equalization: The device includes adaptive equalization to optimize performance over various physical media by reducing inter-symbol interference.
• Programmable De-emphasis: Transmit de-emphasis is programmable, allowing for further signal conditioning to compensate for channel loss.
• Low Power Consumption: It operates with low power consumption, making it ideal for power-sensitive applications.

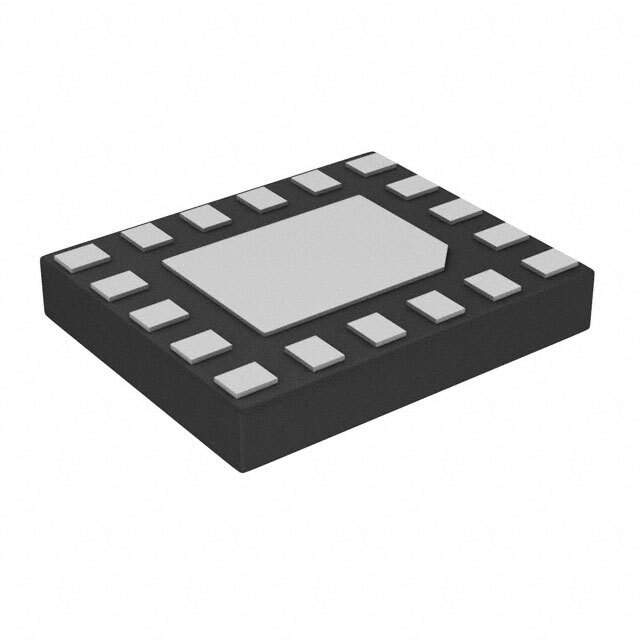

• Small Form Factor: Housed in a small WQFN package, the TUSB542RWQR is designed for space-constrained applications.
• Temperature Range: The device is operational over an extended temperature range, ensuring reliability across different environmental conditions.
• I2C Support: It includes an I2C interface for device configuration, enabling flexibility and control over the signal conditioning parameters.

Applications

The TUSB542RWQR is versatile and can be used in a variety of applications, including desktop and laptop computers, docking stations, display applications, and high-speed data transmission cables. Its ability to maintain signal integrity over longer distances and through connectors with high levels of crosstalk makes it an ideal choice for designers looking to improve USB signal quality in their systems.

For detailed technical specifications, application circuits, and installation guidelines, refer to the official Texas Instruments datasheet for the TUSB542RWQR.
