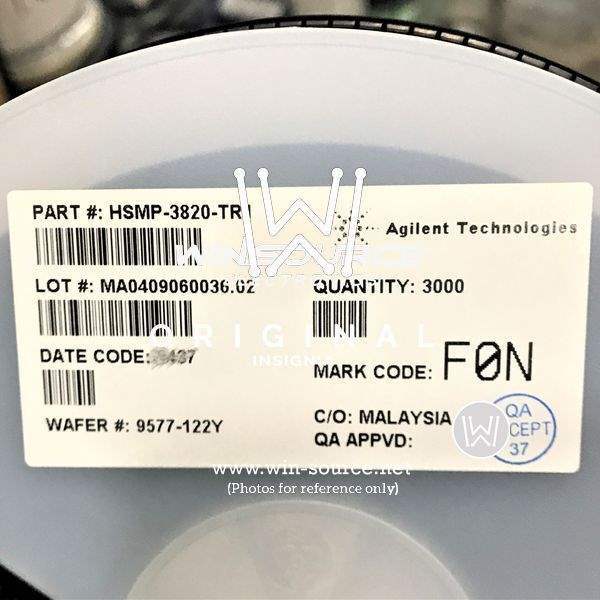

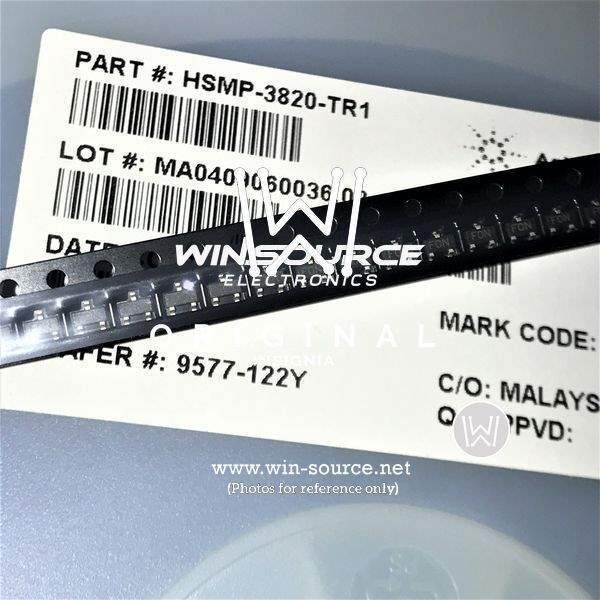

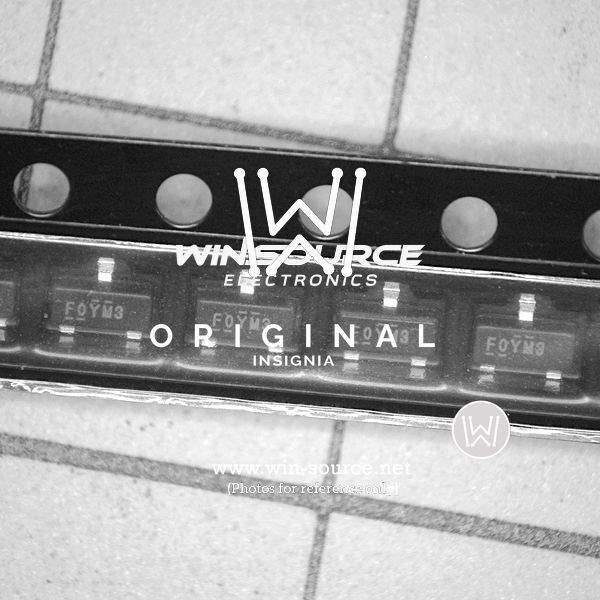

HSMP-3820-TR1G Real Image HSMP-3820-TR1G label picture HSMP-3820-TR1G real image HSMP-3820-TR1G real image4625
Same model may have multiple batches, images only for reference.
HSMP-3820-TR1G Real Image HSMP-3820-TR1G label picture HSMP-3820-TR1G real image HSMP-3820-TR1G real image4625
HSMP-3820-TR1G Real Image HSMP-3820-TR1G label picture HSMP-3820-TR1G real image HSMP-3820-TR1G real image4625
Same model may have multiple batches, images only for reference.

HSMP-3820-TR1G

Part No HSMP-3820-TR1G
Manufacturer Broadcom Limited
Catalog RF Diodes
Description DIODE PIN SWITCH 50V SOT-23
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Diode Type PIN - Single
Voltage - Peak Reverse (Max) 50V
Current - Max 1A
Capacitance @ Vr, F 0.8pF @ 20V, 1MHz
Resistance @ If, F 600 mOhm @ 10mA, 100MHz
Temperature Range - Operating 150°C (TJ)
Case / Package SOT-23-3
Win Source Part Number 017034-HSMP-3820-TR1G
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name HSMP-3820
Introduction Date April 01, 2004
ECCN EAR99
Country of Origin Malaysia, Thailand
Halogen Free Compliant
Estimated EOL Date Obsolete
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian HSMP-3820-TR1G CAD Model

Description

The Broadcom Limited 017034-HSMP-3820-TR1G is a PIN-single diode designed for discrete semiconductor products. With a maximum current of 1A and a peak reverse voltage of 50V, this diode is perfect for use in rectification, voltage regulation, and other similar applications.

  • Package: SOT-23-3
  • Popularity: High
  • Supply and Demand: Limited
