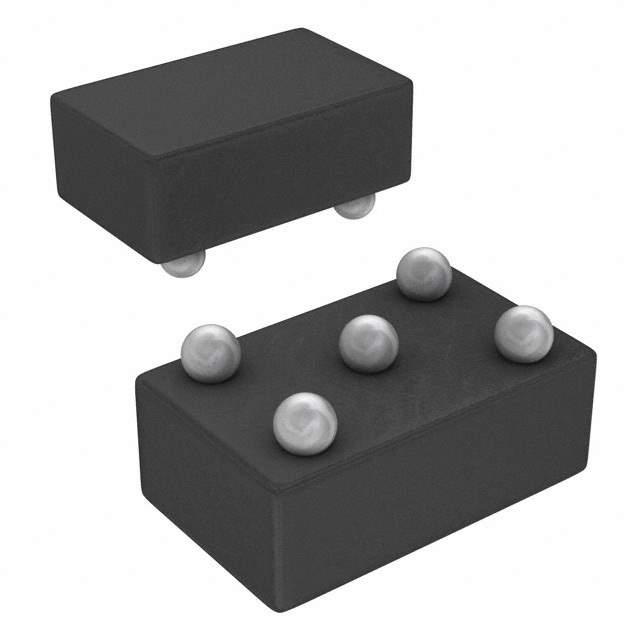

Overview of Texas Instruments TPS73018YZQR

The TPS73018YZQR is a high-precision, low-dropout (LDO) voltage regulator from Texas Instruments, designed to deliver a stable and reliable power supply for various electronic applications. This component is especially suitable for battery-powered devices, as it offers a low quiescent current, which helps to extend battery life. Its small package and high accuracy make it an ideal choice for portable electronics, such as mobile phones, digital cameras, and personal media players.

Key Features

• Output Voltage: The TPS73018YZQR provides a fixed output voltage of 1.8V, which is ideal for powering low-voltage digital circuits.
• High Accuracy: This LDO regulator boasts a high accuracy rate, ensuring that the output voltage remains stable under varying load conditions.
• Low Dropout Voltage: With a low dropout voltage, this device can continue to regulate the output voltage even when the input-to-output voltage differential is minimal, making it highly efficient in battery-operated applications.
• Low Quiescent Current: The quiescent current is as low as 200 µA, which is beneficial for maintaining battery charge over longer periods when the device is in standby mode.
• Thermal and Overcurrent Protection: The TPS73018YZQR includes built-in thermal shutdown and overcurrent protection features to safeguard the device and the system it powers from damage due to excessive heat or current.
• Small Footprint: Housed in a compact 5-pin SOT-23 package, this LDO regulator is suitable for space-constrained applications.

Applications

The Texas Instruments TPS73018YZQR is versatile and can be used in a wide array of applications, including:

• Portable and battery-powered devices
• Wireless LAN and Bluetooth® modules
• Handheld consumer electronics
• Medical devices
• Power management for DSPs and microcontrollers

With its stable performance, low power consumption, and compact design, the TPS73018YZQR from Texas Instruments is a reliable choice for designers looking to enhance the efficiency and longevity of their electronic products.
