Product Overview: TPS71501DCKTG4

The TPS71501DCKTG4 is a highly efficient, low-dropout (LDO) voltage regulator from the esteemed manufacturer, Texas Instruments (TI). This compact and reliable component is designed to cater to a wide array of applications, from automotive to industrial and consumer electronics, where a stable and precise voltage is crucial for the operation of sensitive circuitry.

Key Features

• Output Voltage: The TPS71501DCKTG4 provides a fixed output voltage of 1.8V, which is suitable for powering low-voltage logic and analog devices.
• High Input Voltage Range: This LDO regulator can support an input voltage range from 2.5V to 24V, making it versatile for various power supply scenarios.
• Low Dropout: With a very low dropout voltage, this device ensures efficient operation even when the input voltage is close to the output voltage, thereby maximizing battery life in portable applications.
• Current Capacity: It offers an output current of up to 50mA, which is adequate for small-scale operations and can power several low-power ICs or microcontrollers.
• Thermal and Overcurrent Protection: The TPS71501DCKTG4 includes built-in thermal shutdown and overcurrent protection features to safeguard the device and the system under abnormal conditions.

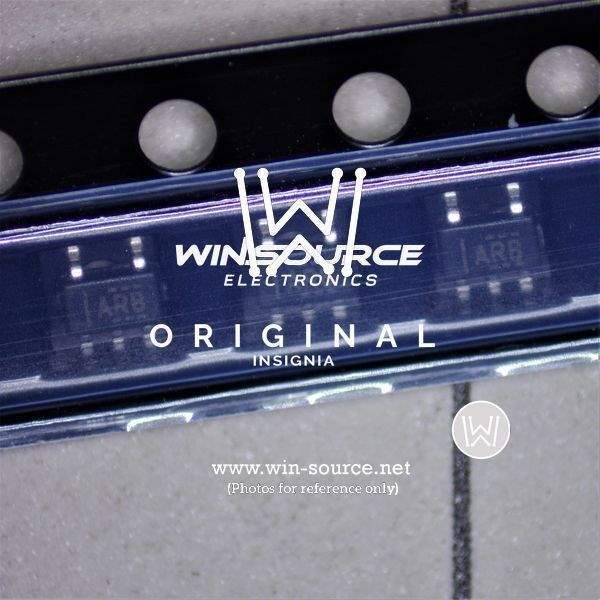

• Package: Housed in a compact 5-pin SC-70 package, it is suitable for space-constrained applications.

Applications

Due to its high reliability and performance, the TPS71501DCKTG4 is an ideal choice for a multitude of applications, including:

• Portable and battery-powered devices
• Automotive electronics
• Power supplies for sensors and microcontrollers
• Consumer electronics such as cameras and personal media players
• Telecommunications infrastructure

Additional Benefits

The TPS71501DCKTG4 is designed with a stable operation in mind, requiring only a low-ESR ceramic capacitor for output stability. This not only simplifies design but also reduces the overall bill of materials. Furthermore, its low quiescent current makes it an excellent choice for battery-powered applications where power conservation is paramount.

With its robust design, comprehensive protection features, and wide input voltage range, the TPS71501DCKTG4 from Texas Instruments stands out as a reliable and versatile LDO voltage regulator for a variety of electronic applications.
