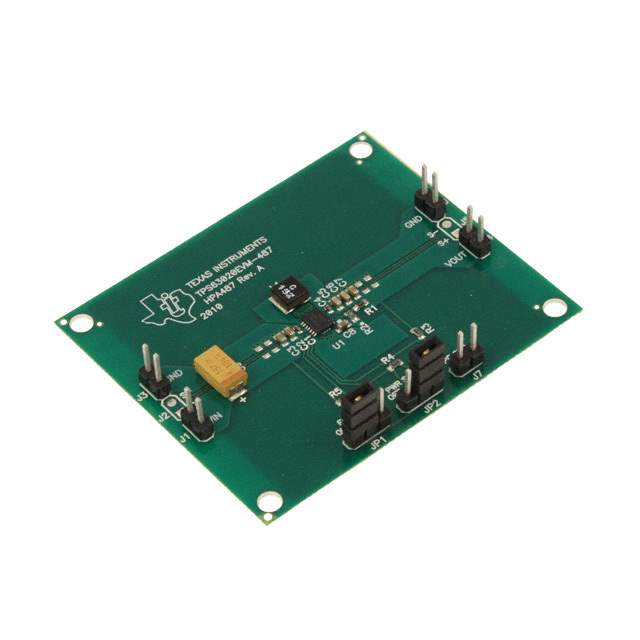

The TPS63020EVM-487 from Texas Instruments is a comprehensive evaluation module designed for engineers and developers to test the capabilities and performance of the TPS63020 buck-boost converter. This versatile evaluation module (EVM) provides an efficient platform for testing the TPS63020 integrated circuit (IC), which is known for its ability to maintain a stable output voltage despite varying input voltages.

Key Features

• Wide Input Voltage Range: The TPS63020EVM-487 supports an input voltage range from 1.8V to 5.5V, making it suitable for a variety of power sources including single-cell lithium-ion batteries and other common power rails.
• Adjustable Output Voltage: Users can adjust the output voltage from 1.2V to 5.5V to suit the requirements of the target application, ensuring versatility across different use cases.
• High Efficiency: The EVM showcases the high efficiency of the TPS63020 IC, which can be up to 95%, reducing power loss and improving overall system performance.
• Low Ripple: The design minimizes output voltage ripple, providing a clean and stable voltage supply critical for sensitive electronics.
• Compact Form Factor: The EVM is designed to be compact, facilitating easy integration into existing systems and prototypes.

Applications

The TPS63020EVM-487 is ideal for a range of applications, including:

• Portable and battery-powered devices
• Energy harvesting systems
• Power supply modules for embedded systems
• Point-of-load conversions

Easy to Use

The evaluation module comes with all necessary components to immediately begin testing, including power inductors, input and output capacitors, and resistors to set the output voltage. It also features test points for easy measurement of input and output voltages, currents, and efficiency. Additionally, the TPS63020EVM-487 provides thermal protection and over-current protection features, ensuring safe operation during evaluation.

Support and Resources

Users can access extensive support and resources from Texas Instruments, including detailed technical documentation, reference designs, and customer support forums to assist with the development process and maximize the use of the TPS63020EVM-487.
