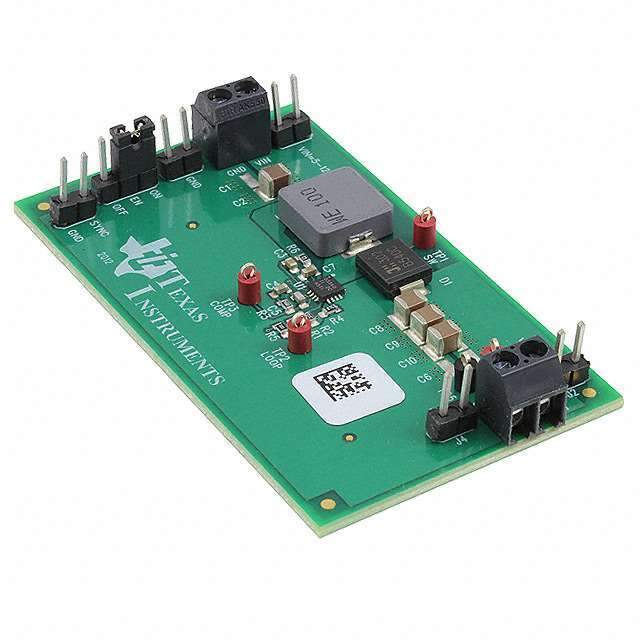

The TPS55340EVM-017 is a fully assembled and tested circuit for evaluating the TPS55340 Integrated Circuit from Texas Instruments. The TPS55340 is a high-frequency, monolithic, step-down switch-mode converter with integrated 5-A, 40-V power switch. It is designed for systems that require efficient power conversion with a minimal footprint.

Key Features

• High Efficiency: The TPS55340EVM-017 offers a high efficiency rate, which makes it suitable for battery-powered applications where energy conservation is critical.
• Wide Input Voltage Range: This evaluation module operates over a wide input voltage range from 3.5 V to 42 V, accommodating a variety of power sources.
• Adjustable Output Voltage: The output voltage is adjustable from 0.8 V to 32 V, providing versatility for different design requirements.
• Integrated 5-A Switch: The module includes an integrated 5-A, 40-V power switch, reducing the need for external components and simplifying the design process.
• Frequency Synchronization: It allows for synchronization to an external clock to reduce electromagnetic interference (EMI) and optimize system performance.

Applications

The TPS55340EVM-017 is ideal for a wide range of applications, including:

• Industrial and Car Audio Power Supplies
• Aftermarket Automotive Solutions
• Portable Electronics
• Low Power Communication Devices

Design and Layout Considerations

Designed with the engineer in mind, the TPS55340EVM-017 features a compact layout and is equipped with test points that facilitate easy evaluation of the TPS55340 IC's features and performance. Engineers can quickly integrate the module into prototype designs for testing and validation purposes, accelerating the development cycle.

Additional Resources

For further information, technical support, and ordering details, visit the Texas Instruments website. There, you will find comprehensive datasheets, user guides, and application notes to assist you in maximizing the functionality of the TPS55340EVM-017 Evaluation Module.
