The TPS259261DRCR is a sophisticated power management integrated circuit (IC) designed by Texas Instruments, renowned for their innovative and reliable electronic components. This particular IC is part of the TPS2592xx family of eFuses, which are electronic fuses designed to provide over-current protection for sensitive electronic circuits.

Key Features

• Operating Voltage Range: The device operates over a wide input voltage range from 2.7V to 18V, making it versatile for various applications.
• Current Limiting: It features adjustable current limiting which can be set by an external resistor. This allows for precise control over the maximum current supplied to the load.
• Fast Overcurrent Response: The TPS259261DRCR responds quickly to overcurrent conditions, helping to protect circuitry from damage.
• Thermal Shutdown Protection: It includes a thermal shutdown feature that disables the output when the junction temperature exceeds the thermal shutdown temperature threshold, ensuring the device's safety and longevity.
• Under-Voltage Lockout (UVLO): The UVLO feature ensures that the device operates only when the input voltage is within its specified range, preventing undervoltage operation.

Applications

The TPS259261DRCR is well-suited for a variety of applications where power supply protection is critical. These include:

• Enterprise and Storage Systems
• Consumer Electronics
• Industrial Equipment
• Point of Load (POL) Power Supplies

Package and Quality

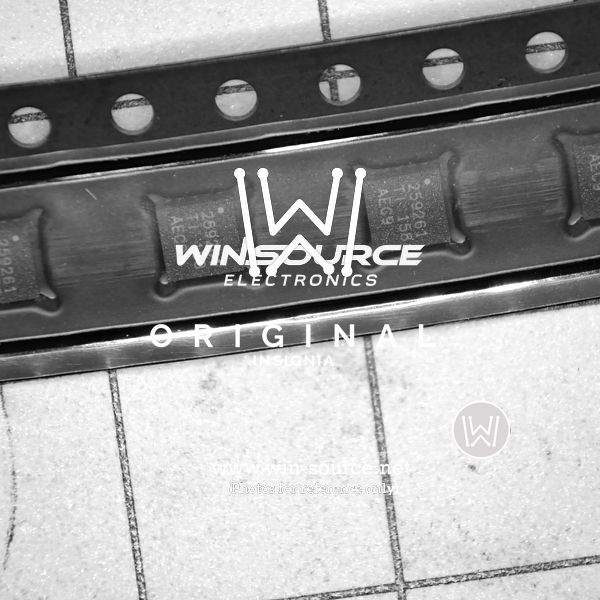

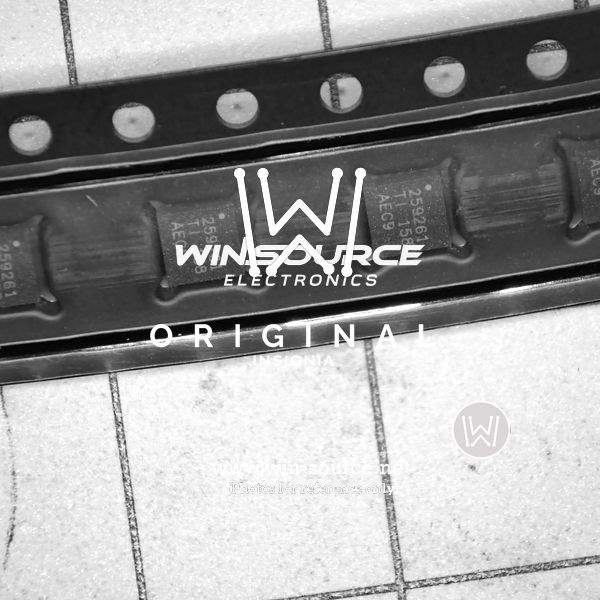

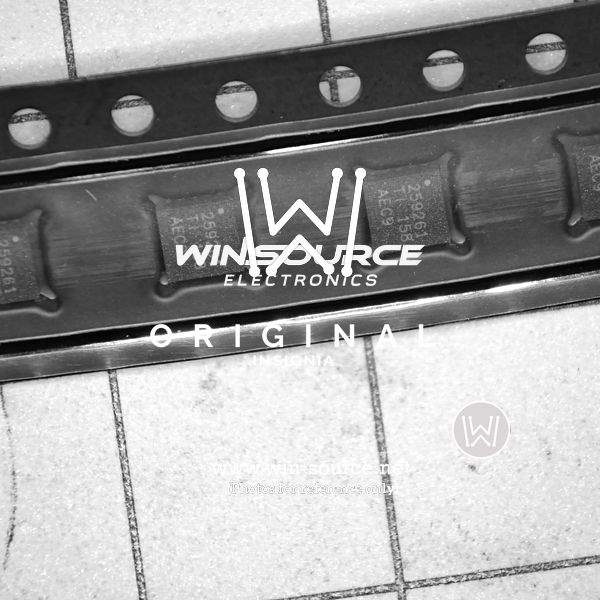

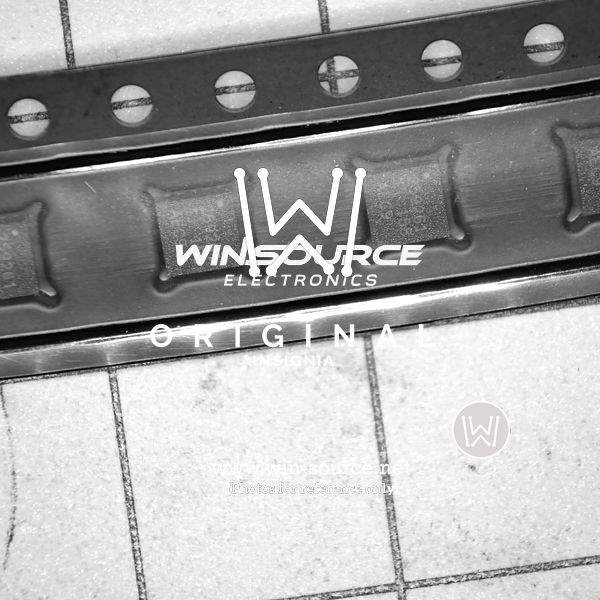

This IC comes in a small, lead-free VSON package, designated as DRCR, which is optimized for space-constrained applications. The TPS259261DRCR is also RoHS compliant, adhering to environmental standards that restrict the use of hazardous substances in electronic equipment.

Additional Resources

For designers and engineers, Texas Instruments provides extensive support through datasheets, application notes, and design tools. These resources are designed to streamline the integration of the TPS259261DRCR into various projects, ensuring efficient and reliable use of the device in power management solutions.
