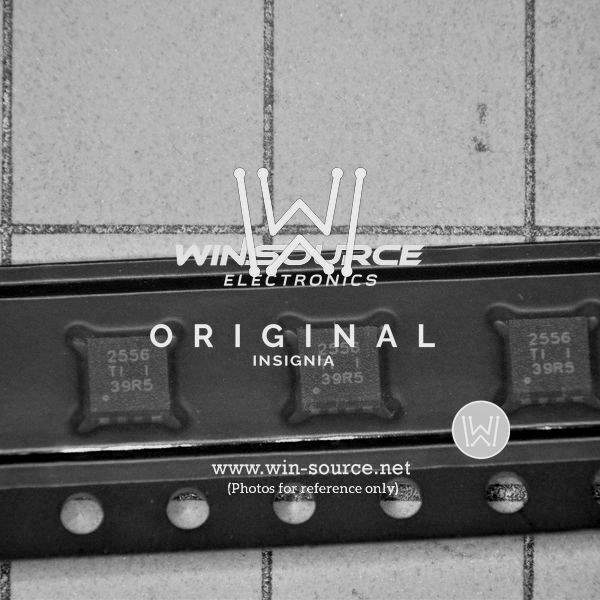

Overview of Texas Instruments TPS2556DRBT

The TPS2556DRBT is a state-of-the-art precision adjustable current-limited power-distribution switch from Texas Instruments, designed to provide a high level of safety and efficiency for USB and other hot-swap applications. This highly integrated device is housed in a compact QFN-10 package, making it an excellent choice for space-constrained applications.

Key Features

• Adjustable Current Limit: Users can set the current limit threshold via an external resistor, allowing for precise control over the power distribution to downstream devices.
• Reverse Voltage Protection: The TPS2556DRBT prevents damage to the system by blocking the current flow when the input voltage is forced below the output voltage.
• Overcurrent and Thermal Protection: With built-in overcurrent and over-temperature protection, the device ensures reliable operation by shutting down the output before damage can occur due to excessive load conditions.
• Fast Transient Response: The device offers a quick response to dynamic load variations, which is critical for maintaining stable voltage levels in digital systems.
• Accurate Current Reporting: An accurate current-sensing output can be used for monitoring and control purposes, providing designers with valuable feedback on system status.

Applications

The versatility of the TPS2556DRBT makes it suitable for a wide range of applications, including:

• USB power distribution and protection
• Hot-swap power supplies
• Portable consumer electronics
• Peripheral power management

Technical Specifications

The TPS2556DRBT operates over a wide input voltage range from 2.5V to 6.5V, making it compatible with most low-voltage power rails. The continuous output current capability is up to 2.5A, which can accommodate a broad array of peripherals and devices. Additionally, the device features an active-high enable input, which provides a simple on/off control interface.

Conclusion

With its precision current limiting, robust protection features, and compact form factor, the TPS2556DRBT from Texas Instruments is an excellent choice for designers looking to enhance the safety and reliability of their power distribution systems. Its performance and versatility make it an invaluable component in modern electronic designs.
