Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tray
Status Obsolete(EOL)
Type Hot Plug Controller
Number of Channels 5
Internal Switch(s) Both
Applications PCI, PCI-X
Features Latched Fault, Thermal Limit, UVLO
Programmable Features Circuit Breaker
Supply Voltage - Operating 3.3V, 5V, ±12V
Current - Output (Max) 100mA, 375mA, 500mA
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 80-HTQFP (12x12)
Win Source Part Number 129764-TPS2340APFP
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TPS2340APFP CAD Model

Description

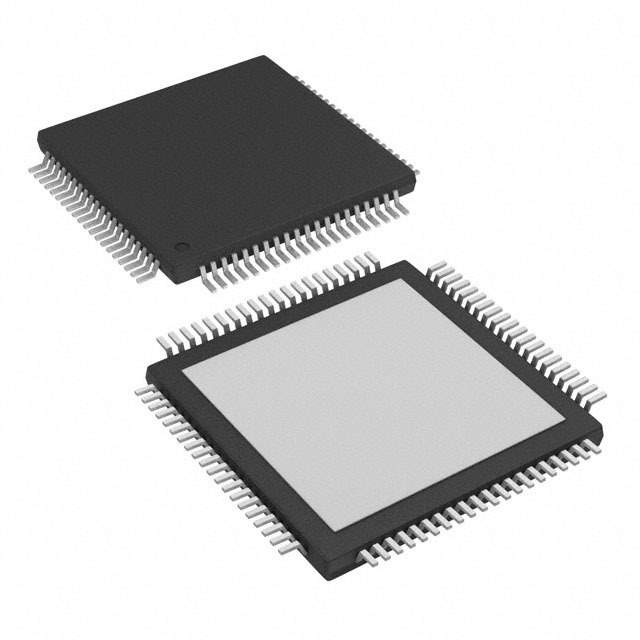

Product Overview: TPS2340APFP from Texas Instruments

The TPS2340APFP is a high-performance, integrated circuit designed by Texas Instruments (TI), aimed at providing efficient power management solutions for a wide range of applications. This advanced Power Distribution Switch is engineered to enhance system reliability and to protect the circuitry by offering features such as precision current limiting, thermal shutdown, and under-voltage lockout.

Key Features

  • High-Side MOSFET Switch: The TPS2340APFP incorporates a high-side MOSFET that allows for seamless power distribution, ensuring minimal voltage drop across the switch.
  • Adjustable Current Limit: Users can adjust the current limit to match the requirements of their specific application, providing a customized level of protection against overcurrent conditions.
  • Fast Overcurrent Response: The device is designed to react swiftly to overcurrent events, thereby preventing damage to downstream components.
  • Thermal Shutdown: An integrated thermal shutdown feature protects the device and the system from overheating, enhancing the overall safety and longevity of the application.
  • Under-Voltage Lockout (UVLO): The TPS2340APFP ensures that the system operates within safe voltage levels by turning off the output when the input voltage falls below a preset threshold.
  • Charge Pump: This feature enables the MOSFET to remain fully enhanced, ensuring optimal performance even under varying load conditions.
  • Power Good (PG) Output: A 'Power Good' signal is provided to indicate when the output voltage is within the operational range, which is essential for system diagnostics and monitoring.

Applications

The TPS2340APFP is versatile and can be used in a multitude of applications, including but not limited to, USB hubs, peripheral ports, hot-swap supplies, and other circuitries that require precise power control and distribution. Its robust design makes it suitable for both industrial and commercial systems that demand high reliability and protection features.

Technical Specifications

  • Input Voltage Range: 2.7V to 5.5V
  • Continuous Load Current: Up to 2.5A
  • Package Type: 14-Pin HTSSOP
  • Operating Temperature Range: -40°C to 85°C

In conclusion, the TPS2340APFP from Texas Instruments is a comprehensive power management solution that ensures safe and efficient operation of electronic systems. Its advanced features and robust design make it an ideal choice for developers and engineers looking to improve the reliability and functionality of their power distribution systems.
