Overview of Texas Instruments TPD6F003DQDR

The Texas Instruments TPD6F003DQDR is a state-of-the-art electrostatic discharge (ESD) protection device designed to safeguard high-speed interfaces from the detrimental effects of ESD strikes. This compact and efficient solution is ideal for a wide range of applications, including consumer electronics, communication devices, and computing systems.

Key Features

• Advanced ESD Protection: The TPD6F003DQDR offers robust ESD protection for high-speed data lines, capable of withstanding ESD strikes up to ±8 kV (IEC 61000-4-2, contact discharge) and ±15 kV (IEC 61000-4-2, air-gap discharge), ensuring the integrity and longevity of electronic components.
• Low Capacitance: With a low input capacitance of typically 0.8 pF, this device is particularly suited for high-speed data applications where signal integrity is paramount.
• Multi-Channel Integration: It integrates six channels of ESD clamping circuits, making it an efficient choice for protecting multiple lines while minimizing board space.
• Flow-Through Design: The TPD6F003DQDR features a flow-through design that simplifies PCB layout and helps maintain signal integrity by allowing signals to pass directly through from the source to the destination.

Applications

• USB interfaces
• HDMI and DisplayPort
• Thunderbolt ports
• LVDS interfaces
• SATA and other high-speed data lines

Package and Quality

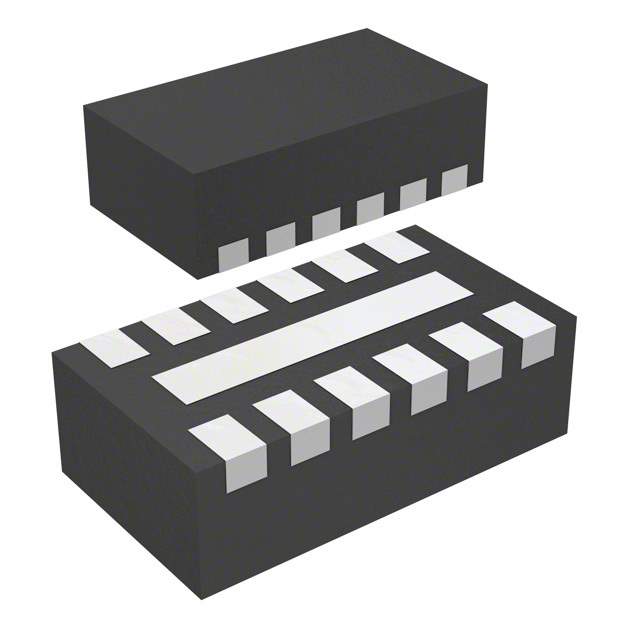

The device is housed in a small and slim DQD (R-PDSO-G8) package, which is not only space-efficient but also offers excellent thermal performance. The TPD6F003DQDR is RoHS compliant and is characterized for operation from -40°C to 85°C, ensuring reliable performance across a wide range of environmental conditions.

With its robust protection features and compact design, the Texas Instruments TPD6F003DQDR is an essential component for designers looking to enhance the durability and reliability of their high-speed digital interfaces against the common threat of ESD events.
