Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Texas Instruments
Package Tape & Reel
Type Steering (Rail to Rail)
Unidirectional Channels 4
Voltage - Reverse Standoff (Typ) 5.5V (Max)
Voltage - Breakdown (Min) 11V
Voltage - Clamping (Max) @ Ipp 17V (Typ)
Current - Peak Pulse (10/1000µs) 5.5A (8/20µs)
Power - Peak Pulse 100W
Power Line Protection Yes
Applications Automotive, Ethernet, USB
Capacitance @ Frequency 1.5pF @ 10MHz
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)

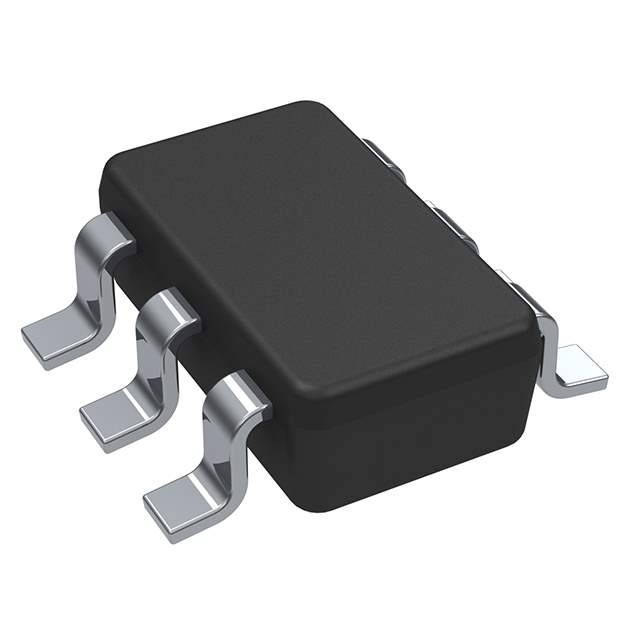

Package / Case SOT-23-6
Supplier Device Package SOT-23-6
Base Product Number TPD4E001
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 296-TPD4E001RDBVRCT,296-TPD4E001RDBVRTR,296-TPD4E001RDBVRDKR
Standard Package 3,000
Win Source Part Number 978668-TPD4E001RDBVR
Ultra Librarian 3D Model Ultra Librarian TPD4E001RDBVR CAD Model

Description

The TPD4E001RDBVR is a high-performance, low-capacitance transient voltage suppressor (TVS) device from Texas Instruments, designed to protect sensitive electronics from electrostatic discharge (ESD) and other voltage-induced transient events. This device is particularly suitable for high-speed data lines and USB interfaces, where signal integrity and protection against electrical disturbances are crucial for reliable operation.

Key Features

  • Low Capacitance: With a typical capacitance of only 0.8 pF, the TPD4E001RDBVR ensures minimal signal distortion, making it ideal for protecting high-speed data interfaces without compromising data integrity.
  • ESD Protection: It provides robust ESD protection for sensitive components, meeting IEC 61000-4-2 (Level 4) standards, and can withstand ESD strikes of ±8 kV (contact discharge) and ±15 kV (air-gap discharge).
  • Small Package Size: Housed in a tiny SOT-23 (RDBVR) package, this device is perfect for space-constrained applications, enabling designers to incorporate ESD protection without a significant impact on the overall board layout.
  • Low Leakage Current: The device features a low leakage current, typically less than 1 µA, which helps to preserve battery life in portable electronics.
  • Broad Application Range: The TPD4E001RDBVR is suitable for a wide range of applications, including USB 2.0 and 3.0 ports, HDMI, eSATA, and Thunderbolt interfaces, as well as gigabit Ethernet and other high-speed data lines.

Applications

The versatile nature of the TPD4E001RDBVR makes it an excellent choice for a variety of applications, particularly where high-speed data transmission and protection from transient voltages are essential. Typical applications include consumer electronics, such as smartphones, tablets, and laptops, as well as communication infrastructure, industrial equipment, and medical devices.

Product Summary

In summary, the TPD4E001RDBVR from Texas Instruments is a compact, high-performance solution for protecting sensitive circuits from ESD and other transient voltage events. Its low capacitance, strong ESD protection, and small form factor make it a highly attractive option for designers looking to enhance the durability and reliability of their electronic products.
