Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 2
STAND-OFF Voltage (Vwm) 13V (Max)
Minimum Breakdown Voltage 14V
Applications General Purpose
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)

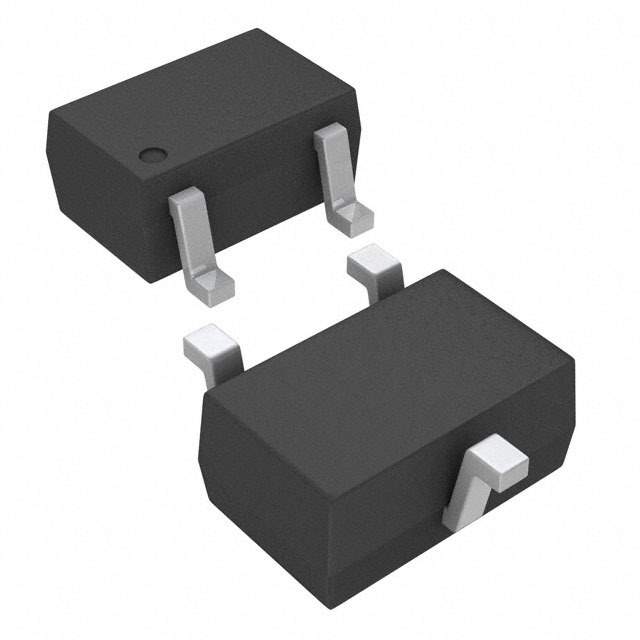

Case / Package SC-70-3
Win Source Part Number 033547-TPD2E007DCKR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name TPD2E007
Introduction Date June 01, 2006
ECCN EAR99
Country of Origin Thailand
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian TPD2E007DCKR CAD Model

Description

The TPD2E007DCKR is a state-of-the-art transient voltage suppressor (TVS) diode array from Texas Instruments, designed to provide a high level of protection for sensitive electronic components. This compact and efficient device is ideal for safeguarding high-speed data lines and I/O ports against electrostatic discharge (ESD), electrical fast transients (EFT), and other voltage-induced transient events.

The TPD2E007DCKR features a dual-channel configuration, making it suitable for protecting two individual lines. Each channel is capable of withstanding ESD strikes of ±8 kV contact discharge and ±15 kV air-gap discharge, as defined by the IEC 61000-4-2 international standard. This ensures that devices incorporating the TPD2E007DCKR are well-protected against common ESD events that can occur during handling or operation.

Housed in a compact SC-70 (SOT-323) package, the TPD2E007DCKR is designed for space-constrained applications. Its small form factor makes it an excellent choice for portable electronics, where board space is at a premium. Despite its diminutive size, it does not compromise on performance, providing low clamping voltage and low leakage current, which are critical for maintaining signal integrity and minimizing power loss.

The device's low capacitance of just 0.5 pF per I/O to ground ensures that signal integrity is maintained even at high data rates, making it suitable for use in applications such as USB 2.0, HDMI, and Ethernet interfaces. Additionally, the TPD2E007DCKR is characterized for operation from –40°C to 85°C, which allows it to be used in a wide range of environments and applications.

Texas Instruments' commitment to quality and reliability is evident in the TPD2E007DCKR, with its robust surge protection capabilities and its ability to maintain functionality even after multiple ESD strikes. This makes it an excellent choice for designers looking to enhance the durability and longevity of their electronic products.

In summary, the TPD2E007DCKR is a versatile and reliable solution for protecting sensitive electronics from voltage transients, and its small size and high performance make it an ideal choice for a wide range of applications.
