Introducing the TMS5703135DZWTQQ1 Microcontroller from Texas Instruments

The TMS5703135DZWTQQ1 is a cutting-edge microcontroller designed by Texas Instruments, renowned for its robust performance and reliability in critical applications. This microcontroller is part of the Hercules TMS570 series, which is specifically engineered to meet the stringent requirements of automotive and industrial control systems.

At the heart of the TMS5703135DZWTQQ1 is a powerful ARM Cortex-R5 CPU core, operating at a frequency of up to 180MHz. This core is designed for real-time operations and is equipped with advanced features such as an IEEE 754-compliant floating-point unit, enhancing the computational capabilities of the microcontroller for complex algorithms and control functions.

One of the standout features of the TMS5703135DZWTQQ1 is its integrated safety architecture. It includes built-in redundancy and diagnostic features that comply with the ISO 26262 and IEC 61508 safety standards, making it an ideal choice for applications that require a high level of functional safety, such as automotive safety-restraint systems, braking, steering, and more.

The microcontroller also boasts a rich set of peripherals designed to facilitate a wide range of connectivity and control tasks. These include multiple CAN (Controller Area Network) interfaces, Ethernet, LIN (Local Interconnect Network), and FlexRay communication protocols, which are essential for modern automotive networks. Additionally, it offers an array of timers, serial communication interfaces, and a high-resolution PWM (Pulse Width Modulation) unit for precise motor control and actuation.

For memory, the TMS5703135DZWTQQ1 is equipped with 3MB of integrated flash memory and 256KB of RAM, providing ample space for application code and data storage. The flash memory also supports Error Correction Code (ECC), further enhancing the reliability of the system.

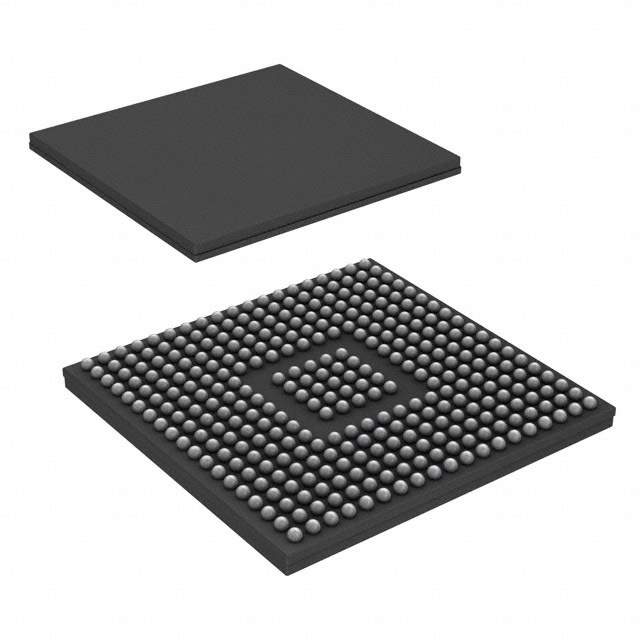

Encased in a compact 337-pin BGA (Ball Grid Array) package, the TMS5703135DZWTQQ1 is designed for space-constrained applications while still offering exceptional thermal performance and signal integrity.

In summary, the TMS5703135DZWTQQ1 from Texas Instruments is a robust and feature-rich microcontroller that provides a perfect solution for developers looking to create safe, efficient, and highly integrated control systems for automotive and industrial applications.
