The TMS320C6747CZKBT3 is a high-performance, fixed/floating-point DSP (Digital Signal Processor) from Texas Instruments, designed to cater to a wide array of applications that demand high levels of computational efficiency and accuracy. This device is part of the TMS320C674x DSP family, which is renowned for delivering cost-effective solutions with the perfect blend of performance and power efficiency.

Key Features

• CPU: The core of the TMS320C6747CZKBT3 is a powerful C674x DSP running at a frequency of up to 300 MHz, which provides up to 2400 MIPS (Million Instructions Per Second).
• Memory: It comes equipped with integrated memory, including a 256KB L2 RAM, which can be configured as cache or controlled memory, and a 64KB L1P program cache, alongside a 32KB L1D data cache to ensure efficient processing.
• Peripheral Support: The DSP boasts a rich set of peripherals such as a 10/100 Mb/s Ethernet MAC (EMAC) with a Management Data Input/Output (MDIO) module, a host-port interface, I2C bus, SPI, and multiple UARTs for serial communication.
• Audio and Imaging Support: With its enhanced Direct Memory Access (EDMA) controller and additional peripherals, this DSP is capable of managing complex audio signal processing and imaging tasks, making it ideal for applications in audio, industrial, and biometric analytics.
• Power Management: The TMS320C6747CZKBT3 incorporates sophisticated power management techniques, allowing for reduced power consumption during idle or less intensive operations, which is crucial for portable and power-sensitive applications.

Applications

The versatility of the TMS320C6747CZKBT3 DSP enables it to be used in a range of applications, including but not limited to professional and consumer audio equipment, industrial automation and control systems, digital motor control, medical imaging devices, and voice and data communication systems.

Package and Quality

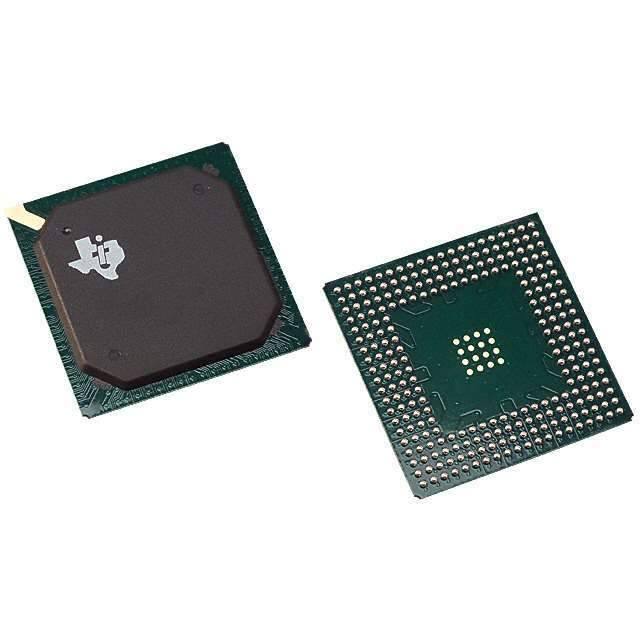

This DSP comes in a 256-ball BGA (Ball Grid Array) package, which allows for a compact footprint on the PCB and robust connectivity for signal integrity. Texas Instruments ensures high standards of quality and reliability for the TMS320C6747CZKBT3, making it a trustworthy choice for critical and demanding applications.
