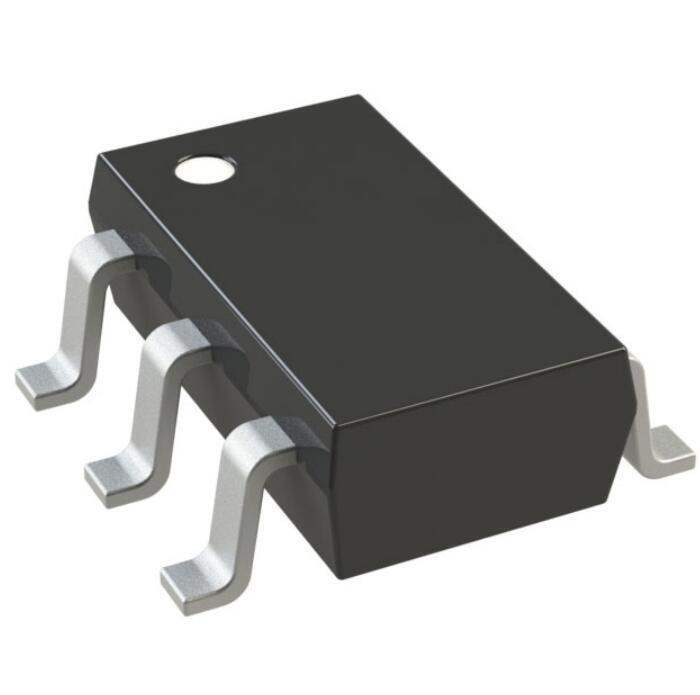

The TLV1811DBVR from Texas Instruments is a high-performance, single comparator that is designed to offer a perfect blend of speed, power efficiency, and accuracy, making it an ideal choice for a wide range of applications. This comparator is housed in a compact SOT-23-5 package, which makes it suitable for space-constrained applications.

Key Features

• Supply Voltage Range: The TLV1811DBVR operates over a wide supply voltage range from 2.7 V to 36 V, or ±1.35 V to ±18 V, which allows it to be used in both battery-powered and line-powered applications.
• Low Power Consumption: With a quiescent current of just 50 µA, this comparator is optimized for low-power applications, helping to extend battery life and reduce power-related costs.
• Fast Response Time: It features a fast response time, making it suitable for systems that require quick decision-making capabilities.
• Output Compatibility: The open-collector output configuration allows for easy interfacing with other logic levels and provides the ability to wire-OR multiple outputs.
• Temperature Range: The device is operational over the industrial temperature range of -40°C to +125°C, ensuring reliable performance under varying environmental conditions.

Applications

The TLV1811DBVR is versatile and can be used in several applications such as:

• Limit Comparators
• Window Comparators
• Battery Monitors
• Time-Delay Generators
• Zero-Crossing Detectors
• Level Shifters

Reliability and Quality

Texas Instruments is known for its commitment to quality and reliability, and the TLV1811DBVR is no exception. It is designed and manufactured to meet the high standards expected from industrial and consumer electronics, ensuring a reliable operation throughout its lifetime.

Ordering Information

The TLV1811DBVR is available in tape and reel packaging, facilitating easy assembly during the manufacturing process. For detailed ordering and shipping information, refer to the Texas Instruments official website or contact authorized distributors.
