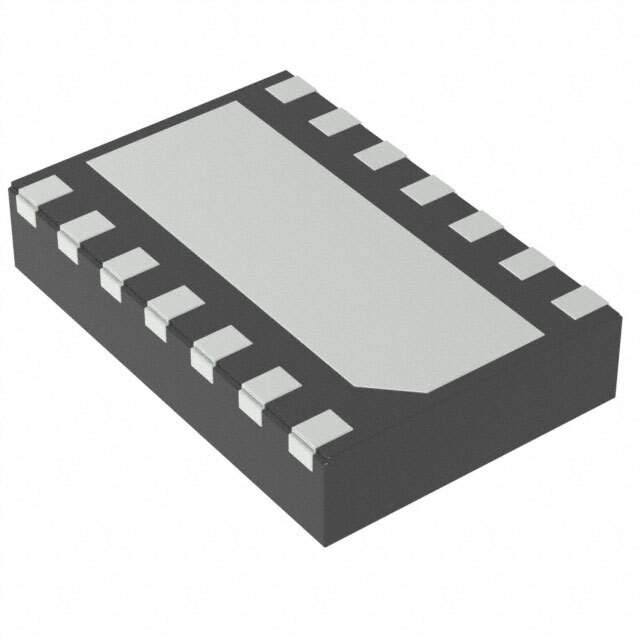

Introducing the TLIN24415DMTRQ1 from Texas Instruments

The TLIN24415DMTRQ1 is a robust, automotive-grade LIN transceiver designed by Texas Instruments to provide a reliable interface between a microcontroller and a LIN physical bus. This product is specifically tailored for the demanding conditions of automotive applications, ensuring high performance and durability in a compact, power-efficient package.

Key Features

• Compliance with LIN Standards: The device is compliant with LIN 2.0, LIN 2.1, LIN 2.2, LIN 2.2A, and ISO/DIS 17987-4.2 standards, making it a versatile choice for various automotive communication needs.
• Wide Operating Voltage Range: With an operating voltage range from 5.5 V to 27 V, the TLIN24415DMTRQ1 is suitable for handling the fluctuations commonly found in automotive power systems.
• Low Current Consumption: The device features a low current consumption in sleep mode, which is critical for reducing overall power consumption in automotive applications.
• High ESD Protection: It offers robust Electrostatic Discharge (ESD) protection, ensuring resilience against the harsh electrical environments found in automotive applications.
• Battery Connection: The transceiver is designed to be connected directly to the battery for continuous operation, even when the ignition is off.
• Thermal Shutdown: The inclusion of a thermal shutdown feature prevents the device from overheating, thereby enhancing its reliability and lifespan.

Applications

The TLIN24415DMTRQ1 is ideally suited for a range of automotive applications, including but not limited to:

• Body Control Modules (BCM)
• Door Modules
• Seat Control
• Climate Control
• Lighting Control

Quality and Reliability

As an automotive-qualified product, the TLIN24415DMTRQ1 meets the stringent requirements of the automotive industry, including AEC-Q100 qualification. It is manufactured in a small, 8-pin package, which allows for a compact PCB design. The device is supplied in tape and reel packaging, making it suitable for high-volume production processes.

In summary, the TLIN24415DMTRQ1 from Texas Instruments is a top-tier choice for automotive manufacturers looking for a reliable, efficient, and standards-compliant LIN transceiver. Its robust feature set ensures seamless integration into a wide array of automotive communication systems, providing a dependable solution for in-vehicle networking.
