Overview of Texas Instruments TL431BIDBZR

The Texas Instruments TL431BIDBZR is a precision programmable reference shunt regulator that is commonly deployed in a wide variety of voltage regulation and system monitoring applications. With its three-terminal adjustable shunt design, it offers excellent flexibility and accuracy, making it a go-to choice for engineers and designers looking for reliable voltage control.

Key Features

• Adjustable Output Voltage: The TL431BIDBZR allows for an adjustable output voltage range from 2.495 V to 36 V, which can be set with two external resistors. This flexibility enables it to be used in numerous applications requiring different voltage levels.
• Precision Reference: It features a typical output voltage tolerance of 0.5%, ensuring high accuracy in voltage regulation and reference applications.
• Low Operational Current: The device operates with a low dynamic output impedance and a typical sinking current capability between 1 mA to 100 mA, making it highly efficient for power-sensitive designs.
• Temperature Compensated: The TL431BIDBZR is temperature-compensated and can maintain stable output voltage over a wide temperature range from -40°C to 125°C, ensuring reliable performance in varying environmental conditions.

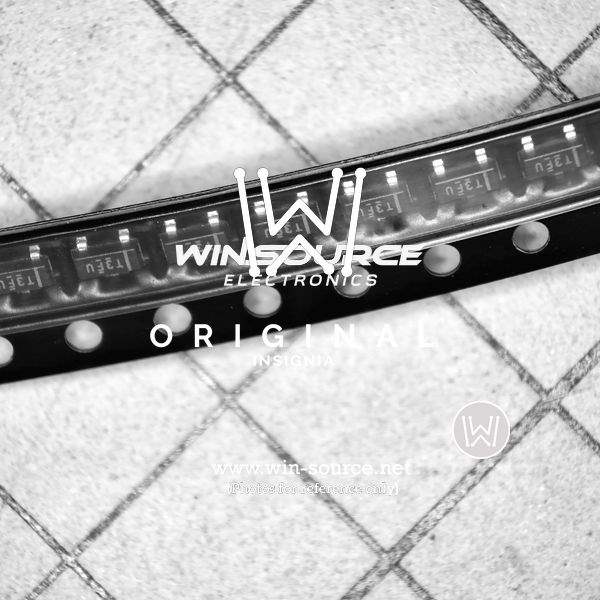

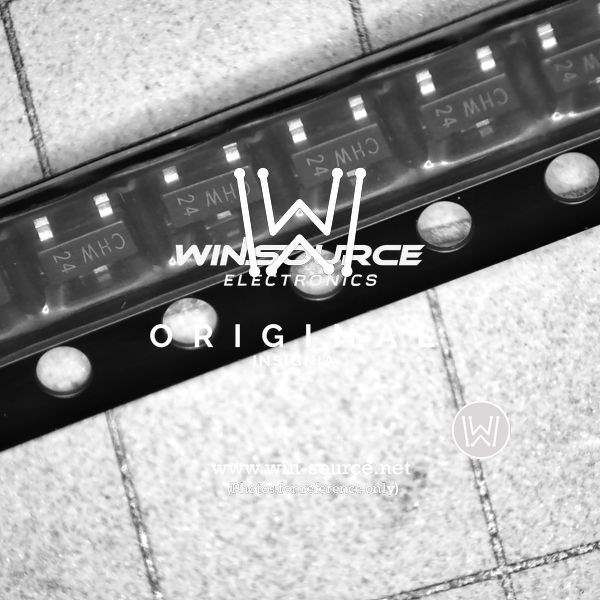

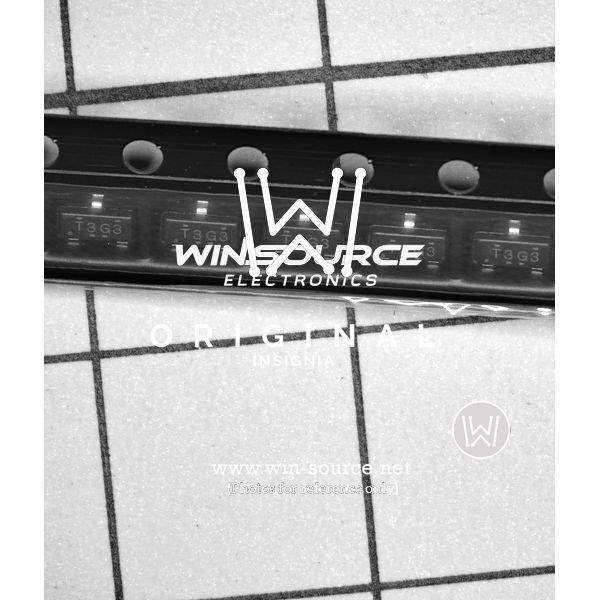

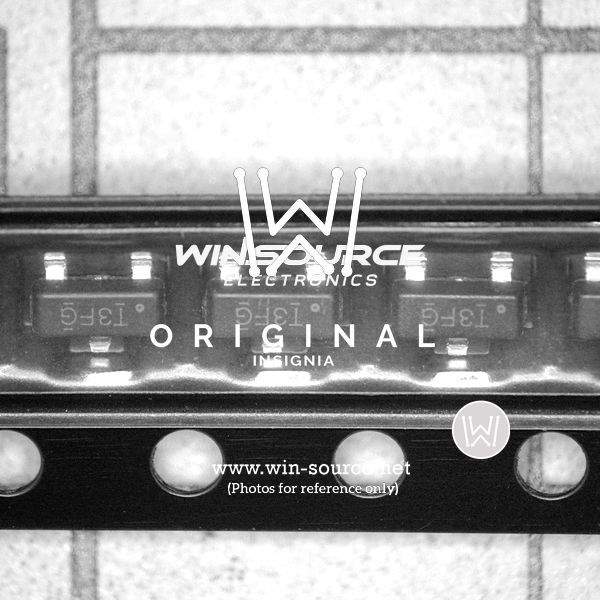

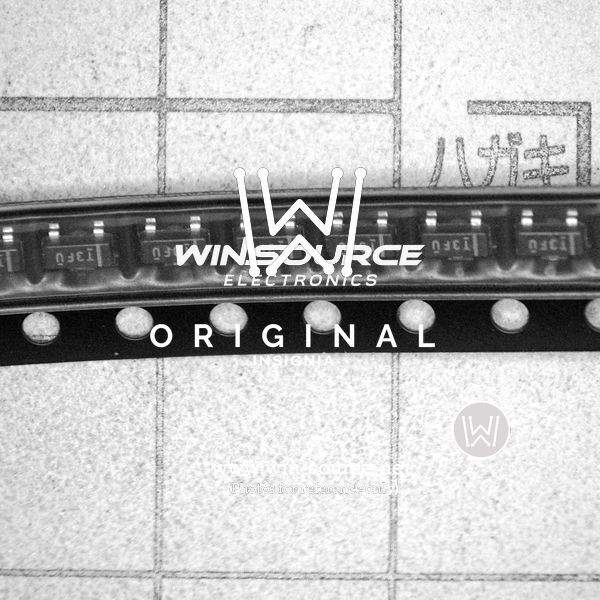

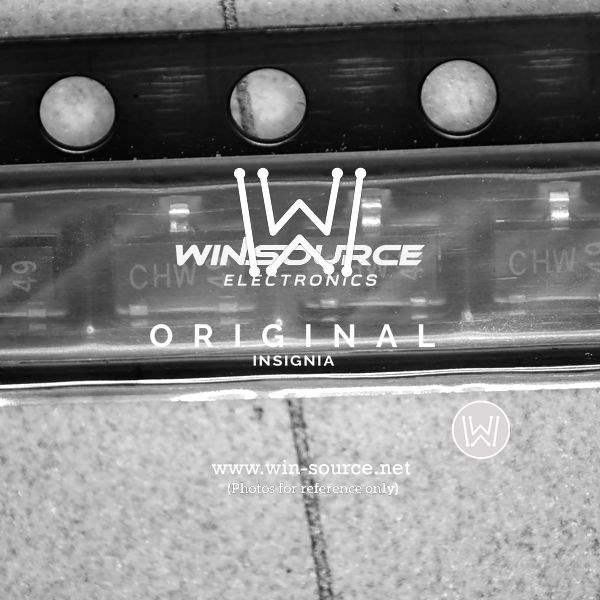

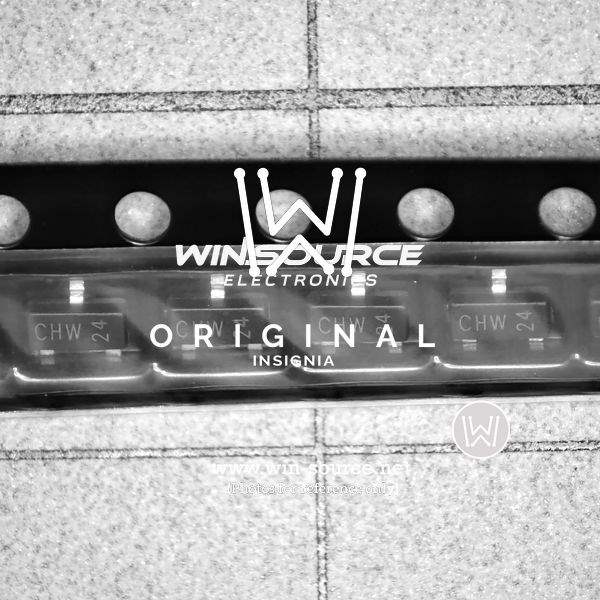

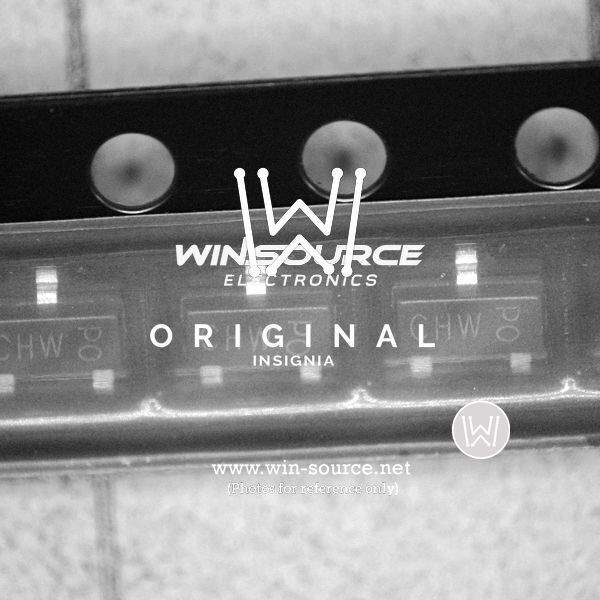

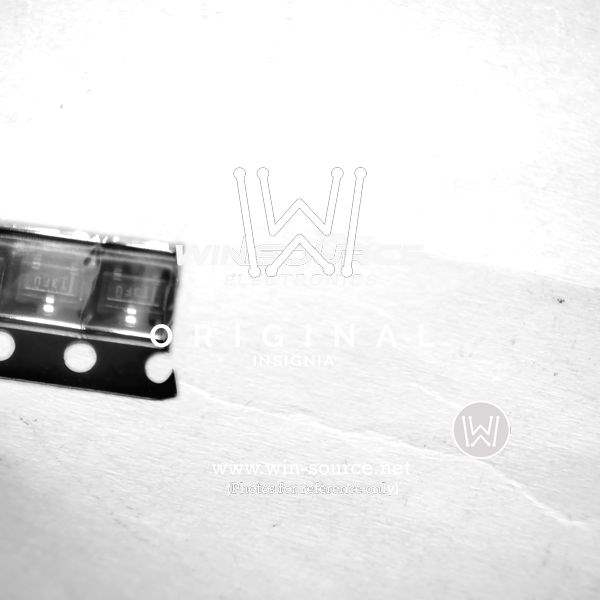

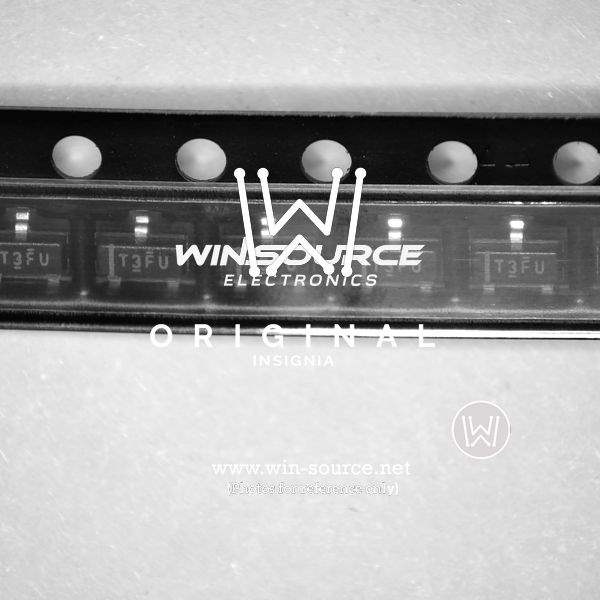

• Package: It comes in a small outline transistor (SOT-23) package, which is ideal for space-constrained applications.

Applications

Due to its versatility, the TL431BIDBZR is well-suited for a multitude of applications, including:

• Power supply regulation
• Voltage monitoring
• Battery chargers
• Switching power supplies
• Adjustable voltage references

Quality and Reliability

Texas Instruments is known for its commitment to quality and reliability, and the TL431BIDBZR is no exception. It is designed and manufactured to meet the stringent requirements of industrial and commercial applications, ensuring consistent performance and long-term reliability for mission-critical systems.

Overall, the Texas Instruments TL431BIDBZR shunt regulator is a highly versatile and reliable component that provides precise voltage regulation in a compact form factor, making it an essential part of any power management solution.
