Introducing the TL16C550DPFBRG4 UART from Texas Instruments

The TL16C550DPFBRG4 is a high-performance UART (Universal Asynchronous Receiver/Transmitter) chip from Texas Instruments, designed to meet the demanding requirements of today's advanced communication systems. As a pivotal component for serial communication, this device is engineered to facilitate seamless data exchange between the microprocessor and serial communication peripherals.

Key Features

• Enhanced Data Rates: The TL16C550DPFBRG4 supports baud rates up to 1.5 Mbps, allowing for high-speed data transmission that is essential for modern applications.
• FIFO Buffers: Equipped with 16-byte FIFOs for both transmit and receive, this UART can handle high data throughput and reduces the potential for data overrun.
• Programmable: Users can customize the operation of the device with a programmable baud rate generator, providing flexibility for a range of applications.
• Automatic Flow Control: The chip includes automatic hardware and software flow control, ensuring reliable communication even under varying data flow conditions.
• Low Power Consumption: Designed with power efficiency in mind, the TL16C550DPFBRG4 features a low-power sleep mode to conserve energy when not in active use.

Applications

The TL16C550DPFBRG4 is suitable for a wide array of applications, including but not limited to:

• Industrial control systems
• Point-of-sale (POS) terminals
• Network servers and routers
• Computer peripherals
• Telecommunications equipment

Reliability and Support

Backed by Texas Instruments' reputation for quality and reliability, the TL16C550DPFBRG4 is a trusted choice for designers and engineers. Additionally, TI provides extensive technical support and documentation, making integration and troubleshooting more straightforward for developers.

Package and Availability

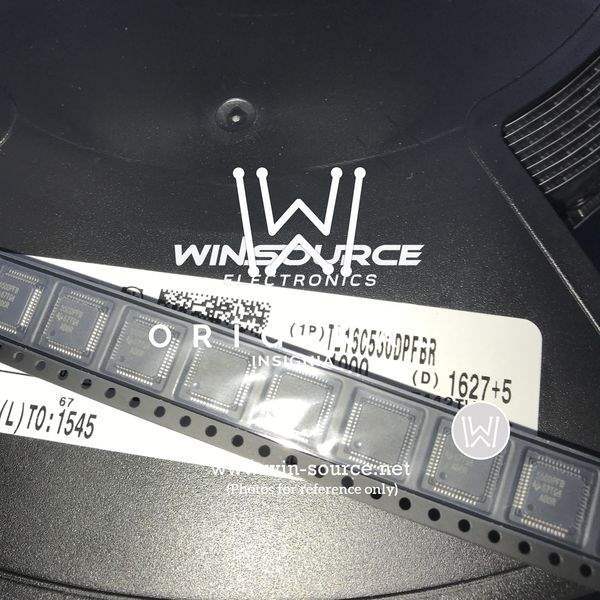

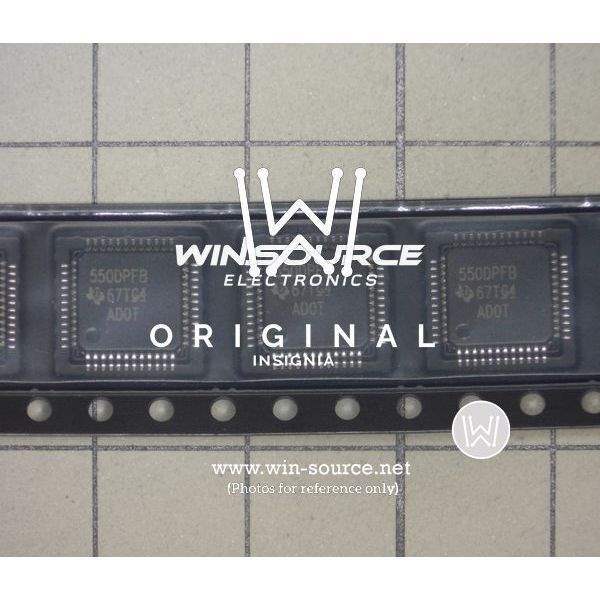

Offered in a 48-pin LQFP (Low-Profile Quad Flat Package), the TL16C550DPFBRG4 is designed for surface mount technology, allowing for a compact footprint on printed circuit boards. Check with authorized distributors for availability and bulk order options.

With its robust feature set and Texas Instruments' commitment to excellence, the TL16C550DPFBRG4 stands out as a superior UART solution for any application requiring reliable serial communication.
