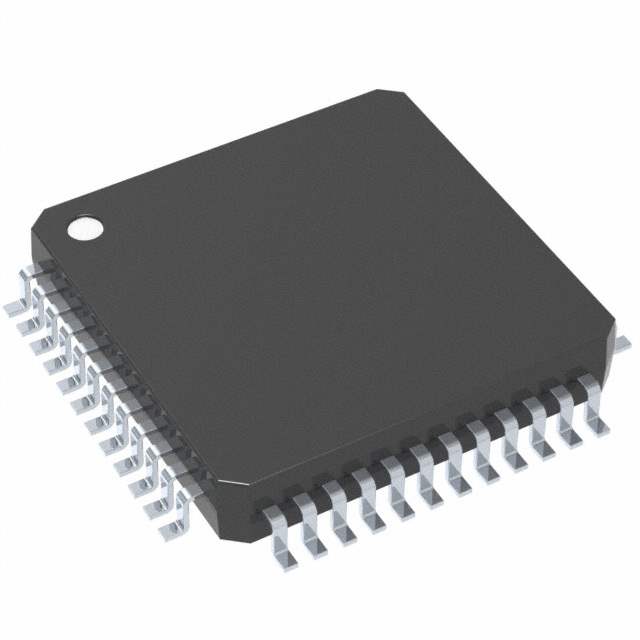

TL16C752PT

Part No TL16C752PT
Manufacturer Texas Instruments
Catalog Interface - UARTs (Universal Asynchronous Receiver Transmitter)
Description IC DUAL 3.3V UART 48-LQFP
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Interface - UARTs (Universal Asynchronous Receiver Transmitter)
Mfr Texas Instruments
Package Tray
Product Status Obsolete
Features False-start Bit Detection
Number of Channels 2, DUART
FIFO's 64 Byte
Voltage - Supply 2.7V ~ 3.6V
With Auto Flow Control Yes
With False Start Bit Detection Yes
With Modem Control Yes
Mounting Type Surface Mount
Package / Case 48-LQFP
Supplier Device Package 48-LQFP (7x7)
Base Product Number TL16C
Standard Package 250 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 742601-TL16C752PT
Ultra Librarian 3D Model Ultra Librarian TL16C752PT CAD Model

Description

The Texas Instruments TL16C752PT is a dual UART (Universal Asynchronous Receiver/Transmitter) IC that offers a seamless and efficient solution for serial communication in a variety of embedded systems. This component is specifically designed to meet the rigorous demands of high-speed data transfer and reliability required in industrial, telecommunications, and consumer electronics applications.

Key Features

  • Dual Channel: The TL16C752PT features two independent UART channels, each capable of handling full-duplex data communication. This allows for simultaneous transmission and reception of data on both channels, doubling the potential throughput without increasing the footprint of the component.
  • High Data Rates: With support for baud rates up to 3 Mbps, this device is well-suited for applications that require high-speed data exchange, such as high-performance computing and advanced communication systems.
  • FIFO Buffers: Each UART channel is equipped with 64-byte FIFOs (First-In-First-Out buffers) for both transmit and receive operations, significantly reducing the overhead for the system's CPU and improving data handling efficiency.
  • Programmable: The TL16C752PT offers a wide range of programmable features, including baud rate, data format, and hardware flow control, which provide flexibility and adaptability to meet specific application requirements.
  • Enhanced Functions: This IC includes additional features such as automatic hardware and software flow control, sleep mode, and a modem control interface, further expanding its utility in complex systems.
  • Versatile Interface: Compatibility with a 5V tolerant I/O interface ensures that the TL16C752PT can be integrated into legacy systems as well as newer designs without the need for additional level shifters.
  • Industrial Temperature Range: The device operates over an industrial temperature range of -40°C to 85°C, making it robust enough for deployment in harsh environmental conditions.

Applications

The TL16C752PT is versatile and can be employed in a wide array of applications, including:

  • Industrial control systems
  • Point-of-sale terminals
  • Networking equipment
  • Data acquisition systems
  • Medical equipment
  • Automotive infotainment

In conclusion, the TL16C752PT from Texas Instruments represents a reliable and feature-rich solution for designers seeking to incorporate dual UART capabilities into their systems. Its combination of high-speed data transfer, programmability, and robustness in varied environmental conditions make it an excellent choice for a multitude of serial communication applications.
