Same model may have multiple batches, images only for reference.

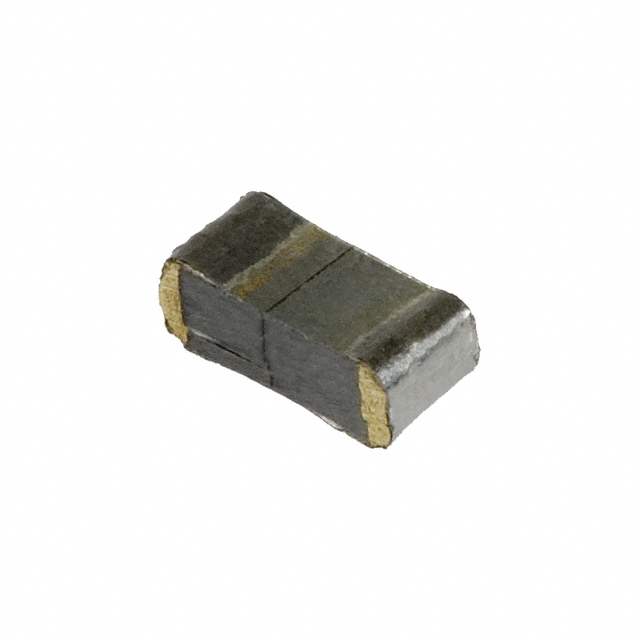

ECW-U1H822JB5 Real Image
Same model may have multiple batches, images only for reference.

ECW-U1H822JB5

Part No ECW-U1H822JB5
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 8200PF 5% 50VDC 1206
Datasheet
ECW-U1H822JB5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Capacitance 8200pF
Tolerance ±5%
Voltage Rating - DC 50V
Temperature Range - Operating -55°C to 105°C
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.047" (1.20mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 109046-ECW-U1H822JB5
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ECW-U1H822JB5 CAD Model

Description

Overview

The ECW-U1H822JB5 is a dependable film capacitor that delivers precise capacitance in a range of electronic applications, ensuring optimal performance and reliability.

Applications

  • Industrial electronics
  • Communications equipment
  • Automotive applications

Features and Benefits

  • Capacitance: 8,200 pF
  • Excellent insulation resistance
  • Low tangent delta
  • Wide temperature range

Additional Details

Its durability and high performance make it a preferred choice for applications requiring stringent component specifications.
