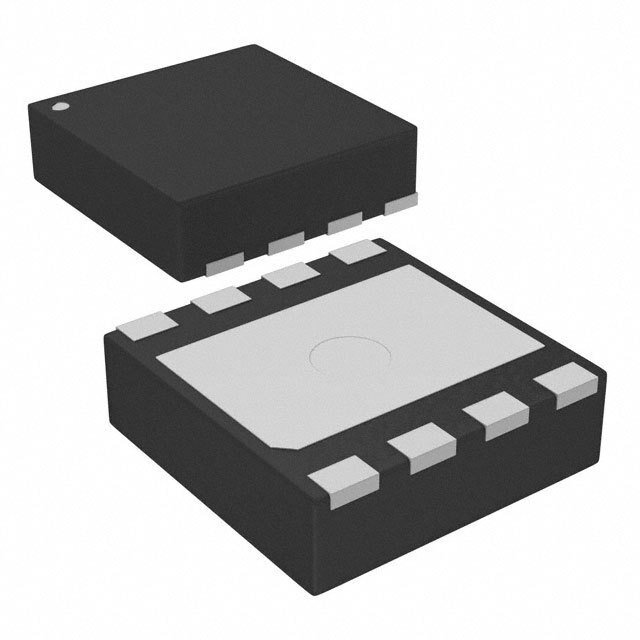

The THS4211DRBR is a high-speed, voltage feedback amplifier designed by Texas Instruments, renowned for its exceptional performance in a variety of applications. This amplifier is part of the THS4211 series, which is well-suited for use in telecommunications, imaging systems, and professional audio equipment due to its wide bandwidth and high slew rate.

Key Features

• High Bandwidth: The device provides a wide bandwidth of 190 MHz at a gain of +2, making it an excellent choice for high-frequency signal processing.
• High Slew Rate: With a high slew rate of 505 V/µs, the THS4211DRBR ensures rapid response to changes in input signal, a crucial factor for fast-switching applications.
• Low Distortion: The low harmonic distortion characteristics of this amplifier make it ideal for precision applications where signal integrity is paramount.
• Single Supply Operation: It can operate from a single supply voltage ranging from 4.5 V to 12 V, providing flexibility in various circuit designs.
• Dual Supply Operation: For applications requiring a dual supply, it can operate between ±2.25 V and ±6 V.
• Output Current: The device can deliver an output current of 100 mA, suitable for driving a wide range of loads.
• Power Down Feature: It includes a power-down feature that reduces the current consumption to 0.3 µA, enhancing power efficiency in battery-operated devices.

Applications

The THS4211DRBR is versatile and can be used in various high-performance applications including:

• Active filters
• ADC buffer amplifiers
• Video and high-speed data lines
• Professional audio equipment
• Test and measurement systems

Its robust design, combined with Texas Instruments' commitment to quality, ensures reliable operation and a long service life. Whether it's for a critical communication system or a high-fidelity audio path, the THS4211DRBR offers performance that engineers can trust.
