The TFP510PAP is a highly integrated device from Texas Instruments, designed to facilitate the transfer of digital video content from various sources to high-resolution display panels. It is a PanelBus™ DVI Transmitter, providing a versatile interface solution with high-quality performance, making it an ideal choice for a wide range of applications including computer monitors, projectors, HDTV, and advanced display systems.

Key Features

• High Resolution: Supports pixel rates up to 165 MHz, enabling it to handle resolutions up to 1080p and WUXGA in 24-bit true color mode, making it suitable for high-definition video applications.
• Compatibility: Fully compliant with the DVI 1.0 specification and compatible with HDMI (High-Definition Multimedia Interface) through the use of a simple level-shifting circuit.
• Advanced Technology: Utilizes Transition Minimized Differential Signaling (TMDS) to transmit high-speed digital data with robust noise immunity.
• Flexible Interface: Features an adaptable digital video interface that can handle both RGB and YCbCr color spaces, providing flexibility for different video formats.
• Power Management: Includes low power operation modes and an integrated power-down feature to enhance energy efficiency.

Applications

The TFP510PAP is suitable for a variety of digital display applications, including:

• High-resolution computer monitors
• Digital projectors
• Professional video editing and playback equipment
• HDTV sets and advanced televisions
• Video wall systems

Technical Specifications

Some of the technical specifications of the TFP510PAP include:

• 165 MHz maximum pixel clock rate
• 24-bit color depth support
• Single-link DVI interface
• Operates on 3.3V power supply
• Low power standby mode

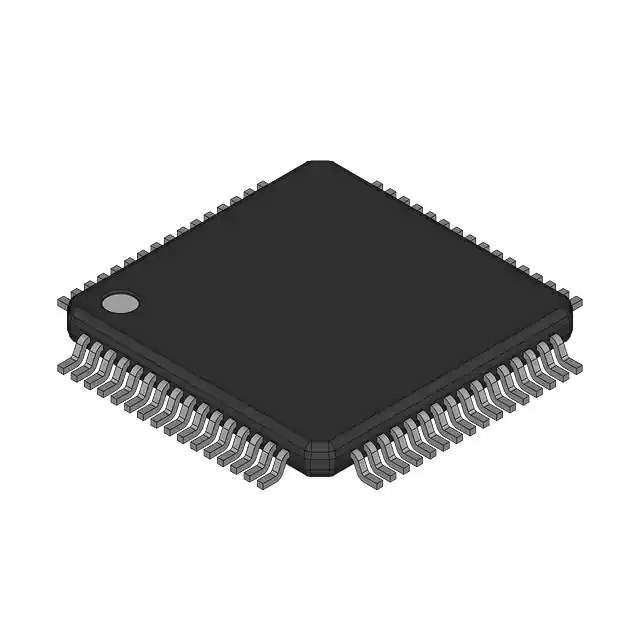

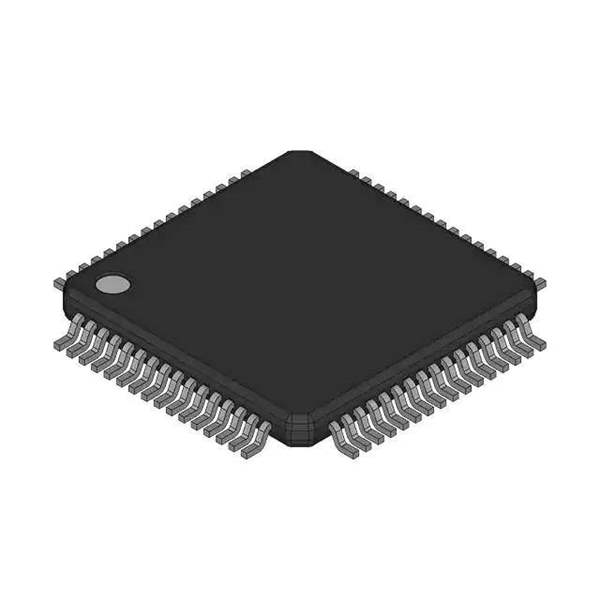

• 64-pin HTQFP package

With its high-speed digital transmission capabilities and compliance with industry standards, the TFP510PAP from Texas Instruments is a reliable and efficient solution for delivering high-quality video content to a variety of digital displays.
