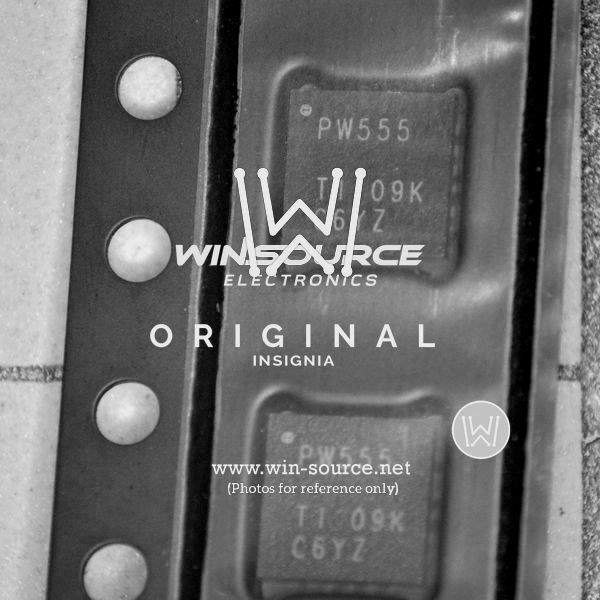

Texas Instruments TCA9555PWR Overview

The TCA9555PWR is a robust integrated circuit designed and manufactured by Texas Instruments (TI), one of the industry's leading semiconductor companies. This device is part of TI's extensive portfolio of interface products and is specifically a 16-bit I2C-bus and SMBus I/O expander. The TCA9555PWR is engineered to provide general-purpose remote I/O expansion for most microcontroller families via the two-wire I2C-bus (Inter-Integrated Circuit) and SMBus (System Management Bus).

Key Features

• 16-Bit I/O Ports: The TCA9555PWR comes with two 8-bit ports (Port 0 and Port 1) that can be configured as inputs or outputs, offering a versatile solution for expanding the I/O capabilities of a microcontroller.
• Operating Voltage: This device supports a wide range of operating voltages from 1.65V to 5.5V, making it suitable for interfacing with both low-voltage and standard 5V logic devices.
• Interrupt Output: An interrupt output pin is available to indicate when an input state has changed, providing a mechanism for alerting the host microcontroller without the need for constant polling.
• High-Speed I2C Interface: The TCA9555PWR supports standard (100 kHz), fast (400 kHz), and fast-mode plus (1 MHz) I2C protocols, ensuring compatibility with a broad range of I2C-bus specifications.
• Power-Up Logic State: The power-up logic state of the I/Os is high-impedance to avoid unintended signals during system power-up.
• Software Reset: A software reset feature allows the device to be reset through the I2C-bus, simplifying remote recovery and initialization.

Applications

The TCA9555PWR is ideal for use in a variety of applications that require additional I/O ports without the need for increasing the size of the microcontroller. Common applications include:

• Servers
• Personal electronics
• Industrial controls
• Medical equipment
• Gaming consoles

Package and Quality

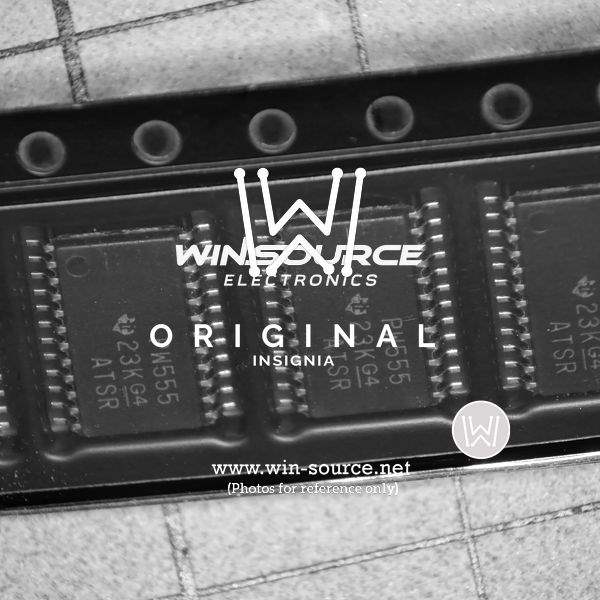

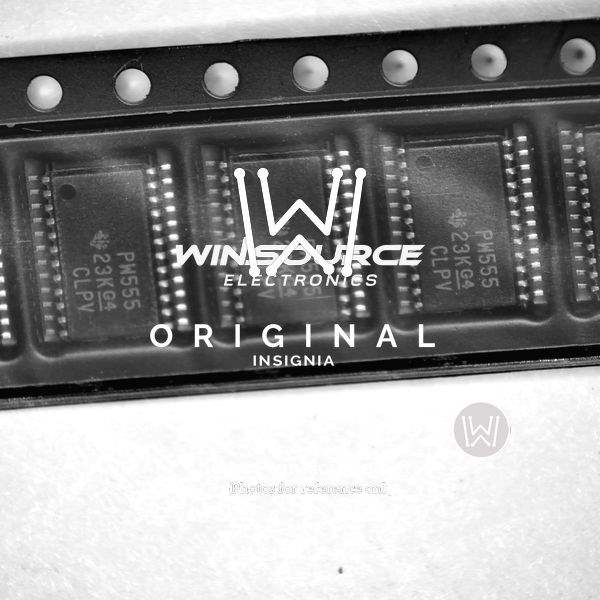

Enclosed in a TSSOP (Thin Shrink Small Outline Package) with 24 pins, the TCA9555PWR ensures a compact footprint on printed circuit boards. TI's commitment to quality ensures that this I/O expander meets rigorous industry standards, making it a reliable choice for both prototyping and mass production environments.
