The TAS5602DCAR is a high-performance, integrated stereo digital amplifier power stage designed to deliver premium audio quality in a compact and efficient package. Manufactured by Texas Instruments, a leader in semiconductor solutions, this product is part of their PurePath™ HD technology line, which is renowned for providing high-definition audio in consumer electronics.

Key Features

• High Output Power Capability: The TAS5602DCAR can deliver up to 20W into an 8-ohm load per channel, with less than 10% THD+N, from a 25V supply, making it suitable for a wide range of audio applications.
• Advanced Modulation Techniques: This product employs advanced closed-loop architecture and a multiple switching edge technique to achieve low distortion levels and reduce electromagnetic interference (EMI).
• Thermal and Overcurrent Protection: Built-in self-protection circuits, including under-voltage, over-voltage, over-temperature, DC detection, and short-circuit protection, ensure the longevity and reliability of the amplifier.
• Efficient Operation: The TAS5602DCAR is designed for efficiency, with a typical power efficiency of 90%, significantly reducing heat dissipation and eliminating the need for large heatsinks.

Applications

The TAS5602DCAR is versatile and can be used in a variety of audio systems, including:

• DVD receivers
• Home theater systems
• Mini/micro component systems
• Powered speaker systems
• TV sound bars

Technical Specifications

• Supply Voltage Range: 10V to 26V
• Output Power: Up to 20W per channel
• Load Impedance: Compatible with 4-ohm to 8-ohm speakers
• Signal-to-Noise Ratio (SNR): Greater than 100 dB

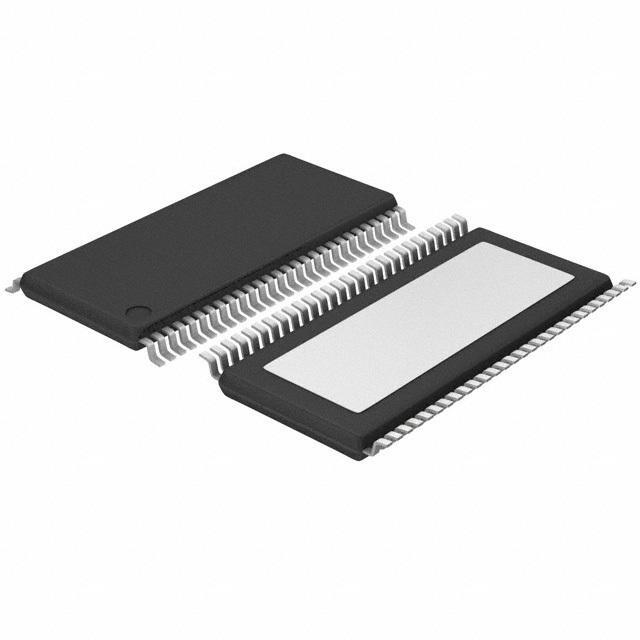

• Package: 44-Pin TSSOP

The TAS5602DCAR is available in a surface-mount package and is designed to meet the rigorous demands of modern audio systems. Its combination of power efficiency, audio performance, and protective features make it an ideal choice for designers looking to create high-quality audio products with a small footprint.
