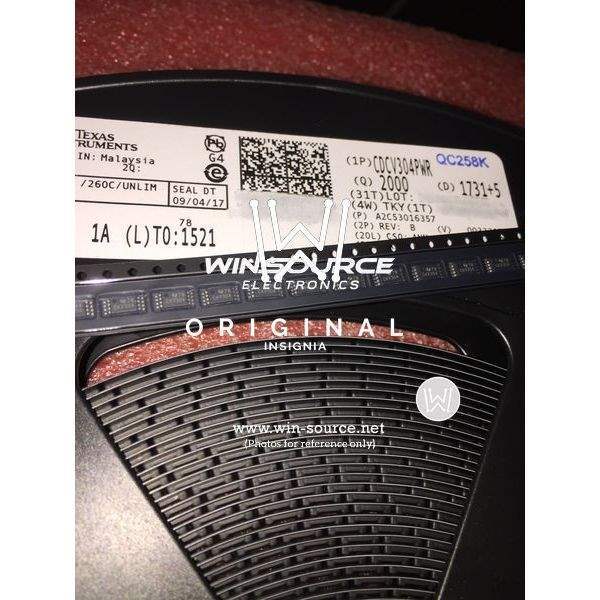

Product Overview: CDCV304PWG4 from Texas Instruments

The CDCV304PWG4 is a high-performance, low-skew, phase-locked loop (PLL) based clock driver manufactured by Texas Instruments. It is designed to distribute high-speed signals with minimal skew, making it an ideal choice for clock distribution in synchronous digital systems. This component is particularly useful in applications requiring precise timing and synchronization, such as in networking, telecommunications, and high-speed computing.

Key Features

• Low Skew: The CDCV304PWG4 ensures tight control over output skew, providing reliable and consistent timing for critical applications.
• Four Outputs: It features four low-skew buffered outputs, enabling multiple devices to be synchronized with the same clock signal.
• Wide Frequency Range: This clock driver supports a wide range of input frequencies, offering versatility for different system requirements.
• Supply Voltage: It operates over a broad supply voltage range, accommodating various levels of system power supplies.
• Power-Down Mode: Includes a power-down feature that reduces power consumption when the device is not in use, contributing to energy-efficient designs.
• Temperature Range: Designed to operate within an extended industrial temperature range, making it suitable for harsh environments.
• Surface-Mount Package: Available in a compact, surface-mount TSSOP package that is conducive to space-saving PCB designs.

Applications

The CDCV304PWG4 is versatile and can be used in a variety of applications, including:

• Server and workstation clock distribution
• Telecommunications and networking equipment
• Storage area networks
• High-speed digital systems
• Industrial and automotive electronics

Quality and Reliability

As with all Texas Instruments products, the CDCV304PWG4 is designed with a commitment to quality and reliability. This product is fabricated using advanced semiconductor processes to ensure high performance and longevity in demanding applications.
