The TAS5186ADDVR from Texas Instruments is a high-performance, six-channel digital audio PWM processor. Designed for demanding applications in audio amplification, this integrated circuit is capable of driving 6 channels at 100 W per channel into 6-ohm loads, making it an ideal choice for home theater systems, mini/micro component systems, and digital TV applications.

Key Features

• Advanced PWM Modulator: The TAS5186ADDVR employs an advanced closed-loop PWM architecture that ensures high-quality audio reproduction with low distortion and noise.
• High Power Efficiency: With its high efficiency, this PWM processor reduces heat dissipation and eliminates the need for large heatsinks, making it suitable for compact audio solutions.
• Multichannel Output: The device supports up to six channels, enabling complex audio systems with multiple speakers to be driven with a single IC.
• Thermal and Overcurrent Protection: Built-in protection mechanisms safeguard the IC against overheating and overcurrent conditions, enhancing system reliability and longevity.
• Flexible Switching Rates: The TAS5186ADDVR can operate at different switching rates, allowing designers to optimize the system for either audio performance or reduced electromagnetic interference (EMI).
• DDV Technology: Texas Instruments' proprietary Digital Differential Voltage (DDV) technology enables the TAS5186ADDVR to deliver high-quality audio while minimizing power loss.

Applications

The versatility of the TAS5186ADDVR makes it suitable for a wide range of audio applications, including:

• Home Theater Receivers
• Powered Speaker Systems
• Digital TV Audio Systems
• Mini/Micro Component Audio Systems

Package and Quality

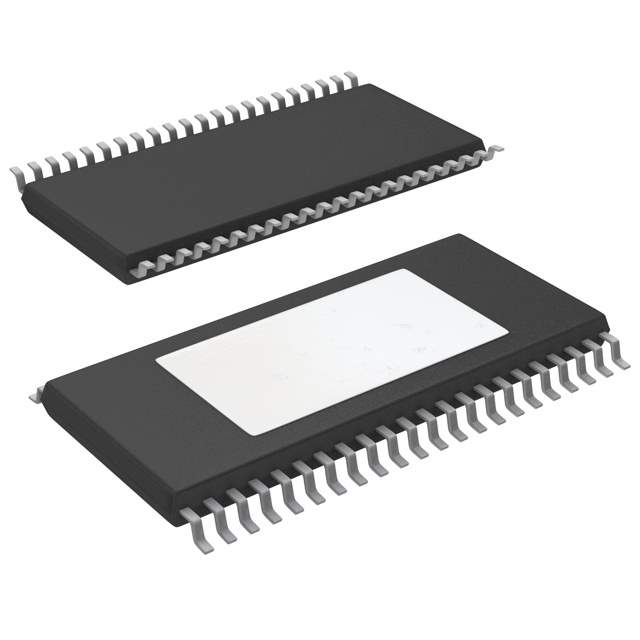

Encased in a 44-TSSOP (Thin Shrink Small Outline Package), the TAS5186ADDVR is designed for surface mount technology, allowing for streamlined manufacturing and assembly processes. Texas Instruments ensures high standards of quality and reliability, making the TAS5186ADDVR a trusted choice for audio system designers and manufacturers.
