The SN74LVC2G34YZTR from Texas Instruments is a high-performance, dual unbuffered buffer gate designed for use in a wide array of electronics applications. This integrated circuit is part of the LVC family, which is characterized by its low-voltage operation and compatibility with 5V systems. It is particularly suitable for down-translation to 3.3V or 2.5V without the need for external level shifters.

Key Features

• Operational Voltage Range: The device supports a wide supply voltage range from 1.65V to 5.5V, making it versatile for interfacing with both low-voltage and standard logic level circuits.
• High Drive: Despite its low power consumption, the SN74LVC2G34YZTR can drive outputs with high current, up to ±24 mA at 3.3V, which is ideal for driving heavy loads.
• Low Power Consumption: The device is optimized for low power consumption, which is critical for battery-operated and power-sensitive applications.
• ESD Protection: It features robust electrostatic discharge (ESD) protection, ensuring reliability and longevity in environments where ESD events may occur.
• Speed: The SN74LVC2G34YZTR offers fast propagation delays, typically 3.1 ns at 3.3V, which allows for high-speed operation in critical timing applications.

Applications

The dual buffer gate is ideal for a variety of applications including:

• Level translation for interfacing devices operating at different voltage levels
• Signal buffering to prevent signal degradation over long distances or in noisy environments
• Driving heavy loads such as LEDs, relays, or other high-current devices
• Use in control logic, computing, data processing, and storage systems where high speed and low power are necessary

Packaging and Quality

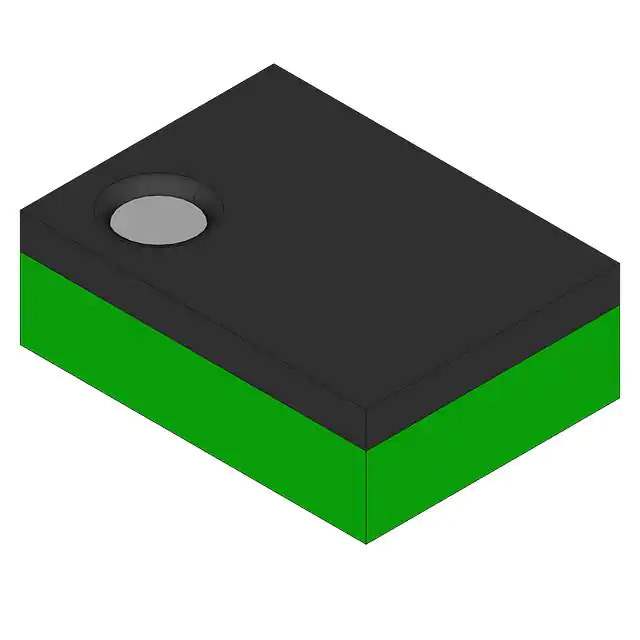

The SN74LVC2G34YZTR comes in a compact, surface-mount package, specifically in the DSBGA (YZ) package with a 6-ball configuration. It is provided in tape and reel form for ease of manufacturing and assembly processes. Texas Instruments ensures high-quality standards, with each device being rigorously tested to meet the industry's demands for reliability and performance.
