The SN74LV138ATPWR is a high-performance, low-voltage 3-to-8 line decoder/demultiplexer designed by Texas Instruments. This integrated circuit (IC) is part of the SN74LV family, which is known for its low-voltage operation and excellent performance in a wide range of applications.

Key Features:

• Voltage Range: The device operates at a voltage range of 2V to 5.5V, making it suitable for battery-operated and low-power systems.
• High-Speed Operation: It features a typical propagation delay time of 4.5 ns when operating at 5V, ensuring fast response times for critical applications.
• Multiple Decoding Options: The SN74LV138ATPWR can be used to decode a 3-bit binary input to one of eight output lines, making it ideal for address decoding and data routing applications.
• Output Drive Capability: With the ability to source or sink up to 12 mA at the output, the IC can drive LEDs and other light loads without additional components.
• Power-Down Protection: Inputs and outputs are protected against damage due to high static voltages or electric fields.
• Wide Operating Temperature: The device can operate over a broad temperature range from -40°C to 85°C, suitable for industrial environments.

Package and Availability:

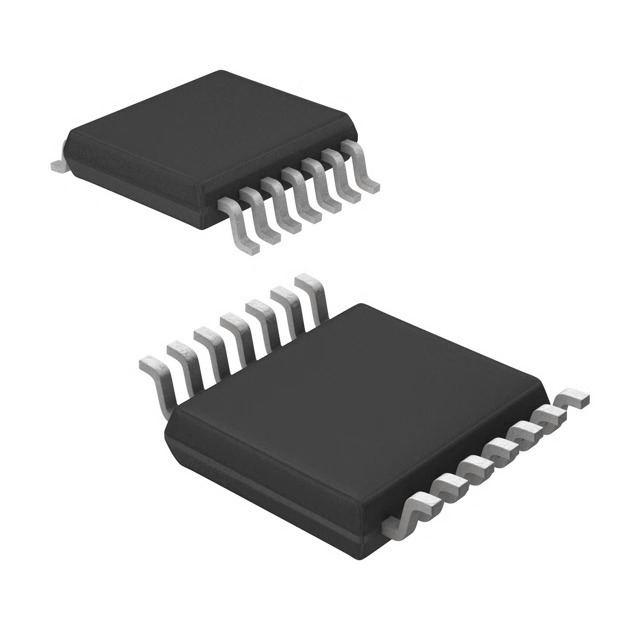

The SN74LV138ATPWR is offered in a TSSOP (Thin Shrink Small Outline Package) with 16 pins, identified by the PWR suffix. This surface-mount package is optimized for space-constrained applications and is compatible with standard SMT assembly processes.

Applications:

With its versatile features, the SN74LV138ATPWR is well-suited for a variety of uses, including:

• Memory chip select decoding
• Data multiplexing
• Control signal routing
• Function generator selection
• Industrial control systems
• Consumer electronics

Overall, the SN74LV138ATPWR from Texas Instruments is a reliable and efficient solution for designers looking to implement decoding or demultiplexing functions in their digital systems, particularly where low power consumption and high-speed operation are critical.
