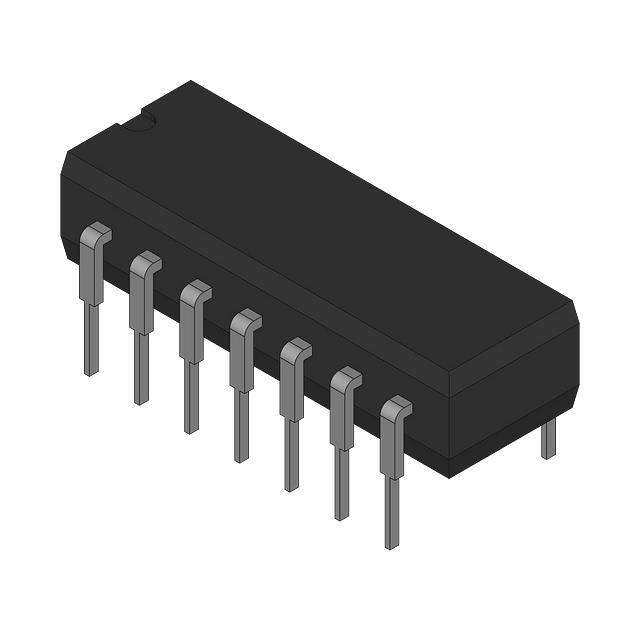

SN74LS280N Real Image
Same model may have multiple batches, images only for reference.

SN74LS280N

Part No SN74LS280N
Manufacturer Texas Instruments
Catalog Logic - Parity Generators and Checkers
Description IC 9-BIT GEN/CHKER 14DIP
Datasheet
SN74LS280N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tube/Rail
Status Active
Logic Type Parity Generator/Checker
Number of Circuits 9-Bit
Current - Output High, Low 400μA, 8mA
Supply Voltage - Operating 4.75 V to 5.25 V
Temperature Range - Operating 0°C to 70°C
Mounting Through Hole
Case / Package 14-PDIP
Win Source Part Number 007114-SN74LS280N
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SN74LS280N CAD Model

Description

The SN74LS280N is a high-performance integrated circuit (IC) developed by Texas Instruments, a renowned global semiconductor company.

  • Type: 9-bit odd/even parity generator/checker
  • Input Lines: Nine data input lines (A1 through A9)
  • Output Lines: Even and Odd
  • Mode Control Inputs: Even and Odd
  • VCC Range: 4.75 to 5.25 volts
  • Package: 14-pin plastic DIP package
  • Mounting: Through-hole mounting
  • Propagation Delay Time: 11.5ns (typical)
  • Compliance: RoHS compliant
