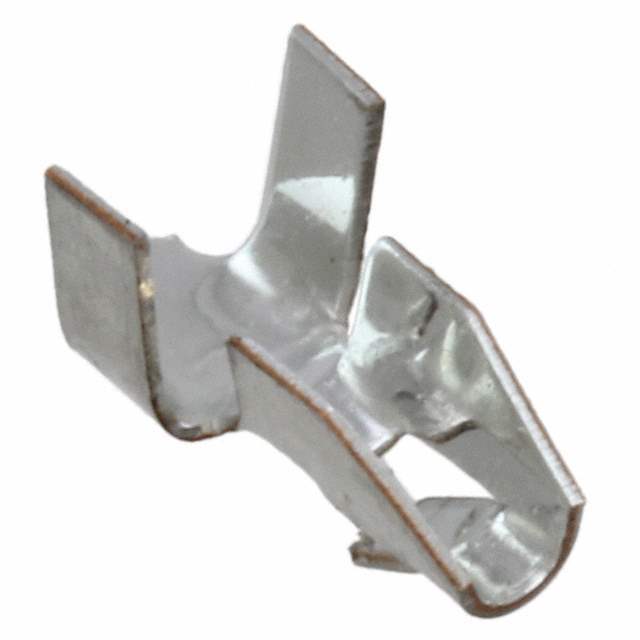

3-770565-2TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

3-770565-2

Part No 3-770565-2
Manufacturer TE Connectivity
Catalog Terminals
Description CONN TERM WTB 18-22AWG TIN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1208471-3-770565-2
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects- Terminals- Wire to Board Connectors
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Terminal Type Through Board, Locking
Hole Diameter 0.072" ~ 0.077" (1.83mm ~ 1.96mm)
Insulation Diameter 0.060" ~ 0.110" (1.52mm ~ 2.79mm)
Length - Overall 0.220" (5.59mm)
Contact Material Phosphor Bronze
Contact Finish Tin
Ultra Librarian 3D Model Ultra Librarian 3-770565-2 CAD Model

Description

PCB Terminals, PCB Pin, PCB Hole Diameter 1.83 mm [.072 in], 22 – 18 AWG Wire Size, .3 – .9 mm² Wire Size, Through Hole - Solder, Tin Plating, Reel
