Overview of SN74AUC2G34DBVR
The SN74AUC2G34DBVR is a high-performance, dual unbuffered positive-edge-triggered D-type flip-flop integrated circuit (IC) designed and manufactured by Texas Instruments. This device is part of TI's advanced ultra-low-voltage CMOS (AUC) logic family, which is optimized for low-voltage operations and high-speed interfacing.
Key Features
- Operating Voltage: The SN74AUC2G34DBVR operates at a very low voltage range of 0.8 V to 2.7 V, making it suitable for battery-operated and portable applications where power efficiency is crucial.
- High-Speed: With a typical tpd of 2.3 ns at 2.5 V, this IC offers high-speed performance that is ideal for fast data transmission and processing tasks.
- Low Power Consumption: The device features a low power consumption profile, which helps in reducing the overall power requirements of the system it is used in.
- Output Drive Capability: The SN74AUC2G34DBVR can drive up to 32 mA at the output, providing good signal integrity and driving capability.
- I/O Tolerance: Inputs and outputs are tolerant to 3.6 V, allowing interfacing with higher voltage logic levels without additional level shifting.
Applications
The versatility of the SN74AUC2G34DBVR makes it suitable for a wide range of applications, including:
- Mobile Phones
- PDAs
- Portable Communication Devices
- Data Communication Equipment
- High-Speed Signal Processing
Package and Quality

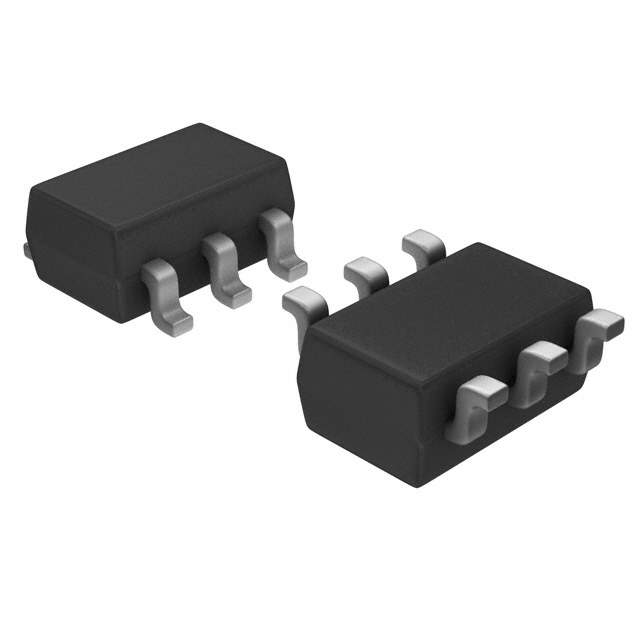

The device comes in a small-outline transistor (SOT-23) package, specifically the 6-pin DBV variant, which is ideal for space-constrained applications. The SN74AUC2G34DBVR is also characterized for operation from –40°C to 85°C, ensuring reliable performance across a wide range of environmental conditions.
Conclusion
With its low-voltage operation, high-speed data handling, low power consumption, and robust drive capability, the SN74AUC2G34DBVR from Texas Instruments represents a reliable and efficient solution for designers looking to optimize their digital circuitry in both portable and high-speed applications.
