Overview of SN74AUC2G240YZPR from Texas Instruments

The SN74AUC2G240YZPR is a high-performance, dual inverter from Texas Instruments, designed specifically for use in applications that require low-voltage and low-power operation. This integrated circuit is part of the advanced ultra-low-voltage CMOS (AUC) family and is ideal for use in portable and battery-powered products where efficient energy consumption is critical.

Key Features

• Operating Voltage: The SN74AUC2G240YZPR operates at a very low voltage range of 0.8V to 2.5V, which allows for significant power savings and extends battery life in portable devices.
• High Speed: Despite its low-power consumption, this dual inverter provides high-speed operation, with a typical propagation delay (t<sub>pd) of just 2.3 ns at 2.3 V, ensuring quick signal processing for time-critical applications.
• Low Power Consumption: It features a low static power consumption (I<sub>CC) and a significantly reduced dynamic power consumption, which is essential for power-sensitive designs.
• Dual Inverter Design: The device contains two independent inverters, providing design flexibility and the ability to support complex signal routing within a circuit.
• Output Drive Capability: It is capable of driving loads with up to ±8 mA at 1.8 V, which makes it suitable for driving a variety of loads in different circuit configurations.
• ESD Protection: The SN74AUC2G240YZPR comes with electrostatic discharge (ESD) protection that exceeds JESD 22, ensuring robustness and reliability in harsh environments.

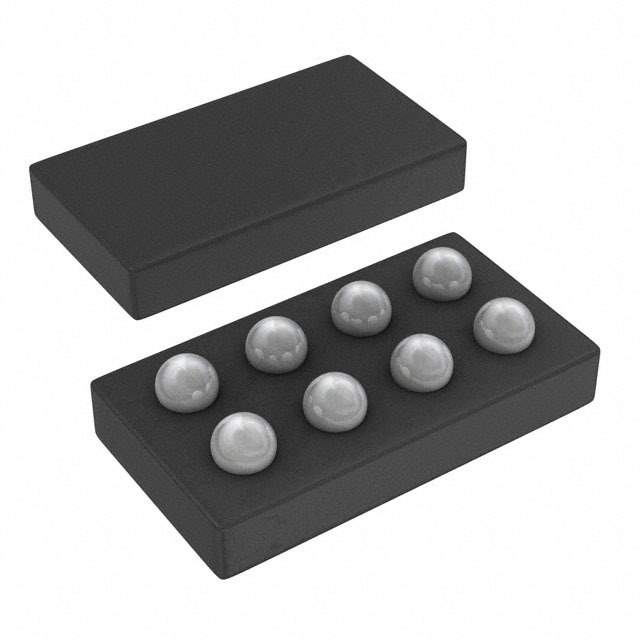

• Package: The device is offered in a compact DSBGA package, which is ideal for space-constrained applications.

Applications

The versatility of the SN74AUC2G240YZPR makes it suitable for a wide range of applications, including:

• Smartphones and Tablets
• Portable Media Players
• Handheld Gaming Devices
• Personal Digital Assistants (PDAs)
• Portable Medical Equipment
• Low-Power Computing Devices

With its combination of low-power operation, high-speed performance, and dual inverter functionality, the SN74AUC2G240YZPR from Texas Instruments is an excellent choice for designers looking to optimize their power-sensitive applications without compromising on performance.
