Same model may have multiple batches, images only for reference.

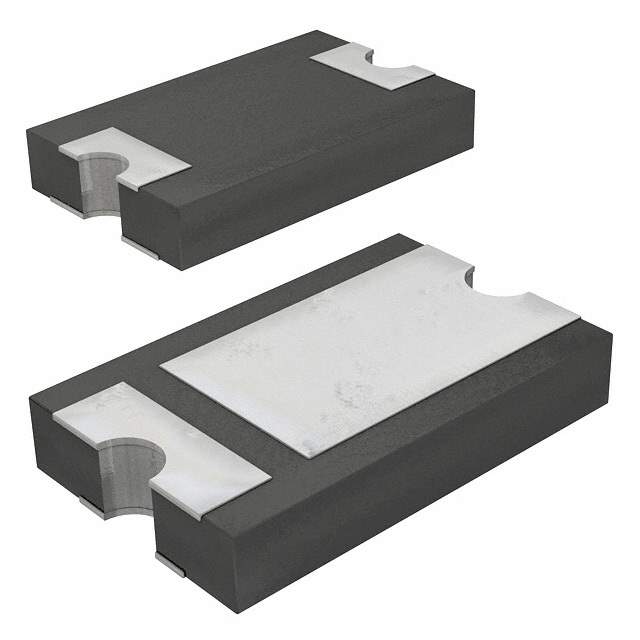

CDBZ5T30100-HF Real Image
Same model may have multiple batches, images only for reference.

CDBZ5T30100-HF

Part No CDBZ5T30100-HF
Manufacturer Comchip Technology
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 100V 30A SMC / Diode 100 V 30A Surface Mount SMC (Z5-T)
Datasheet
CDBZ5T30100-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Comchip Technology
Package Tape & Reel
Product Status Obsolete
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 30A
Voltage - Forward (Vf) (Max) @ If 850 mV @ 30 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 50 µA @ 100 V
Mounting Type Surface Mount
Package / Case Z5-T
Supplier Device Package SMC (Z5-T)
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number CDBZ5T30100
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1349971-CDBZ5T30100-HF
Ultra Librarian 3D Model Ultra Librarian CDBZ5T30100-HF CAD Model

Description

The Comchip Technology 1349971-CDBZ5T30100-HF is a Schottky diode with a fast recovery speed of less than 500ns and a current rating of over 200mA.

  • Diode Type: Schottky
  • Recovery Time: Fast < 500ns
  • Voltage - DC Reverse (Vr) (Max): 100V
  • Current - Average Rectified (Io): 30A
  • Mounting Type: Surface Mount
  • Package / Case: Z5-T
  • Series: CDBZ5T30100
  • Packaging: Tape & Reel
  • Quantity: 3000
