The SN74AHCT540DW is a high-performance, octal buffer and line driver designed to interface with 5-V systems in Texas Instruments' Advanced High-Speed CMOS (AHCT) logic family. This integrated circuit provides a robust solution for driving bus lines or buffering memory address registers with the benefit of high noise immunity and the ability to drive heavy loads.

Key Features

• Logic Type: Octal Buffer/Line Driver with 3-State Outputs
• Operating Voltage: 4.5V to 5.5V, optimized for 5V systems
• Output Drive Capability: -32mA / 64mA, capable of driving heavy loads
• Logic Level Compatibility: Inputs are TTL-compatible; can interface with multiple logic families

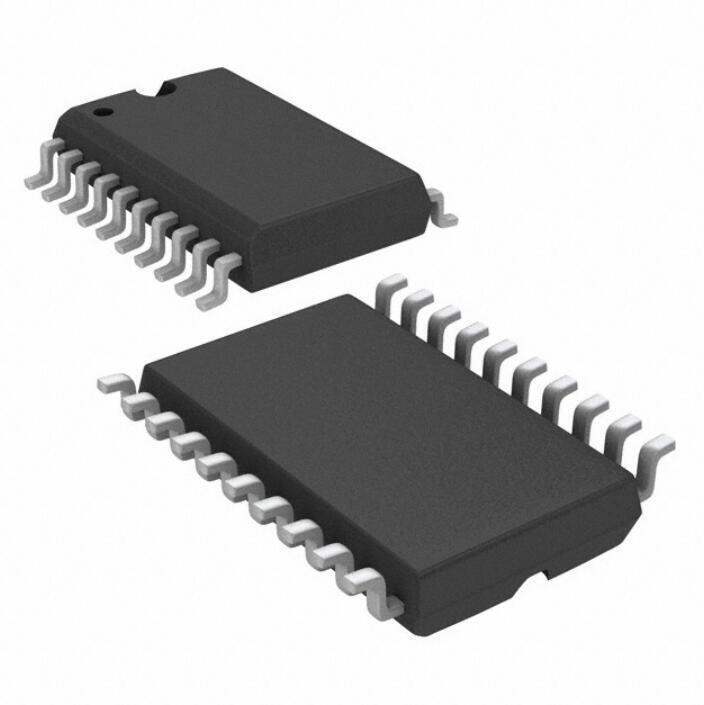

• Package Type: 20-Pin SOIC, providing a compact footprint for space-constrained applications

Performance Advantages

The SN74AHCT540DW offers significant advantages in terms of speed and power efficiency over comparable devices. With a balanced propagation delay and transition times, this device is suited for applications requiring fast signal processing and minimal signal distortion. Its low power consumption makes it ideal for power-sensitive designs.

Applications

This versatile component is commonly used in a variety of applications such as:

• Bus driving for data transmission
• Memory address buffering
• Driving heavily capacitive or resistive loads
• Interfacing between different voltage and logic level systems

Quality and Reliability

As with all Texas Instruments products, the SN74AHCT540DW is manufactured to the highest quality standards. It features over-voltage tolerant inputs that enhance device reliability and protect against incorrect voltage levels. Additionally, the device is specified for a wide operating temperature range, ensuring reliable performance in demanding environments.

Support and Resources

For technical support, reference designs, and more information about the SN74AHCT540DW, visit the Texas Instruments website. Engineers and designers can also access a variety of tools and resources to assist with their design and implementation process.
