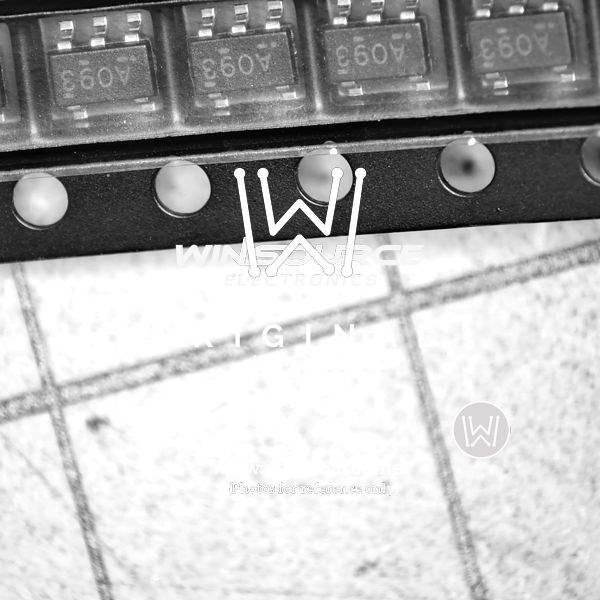

SN74AHC1G09DBVR Real Image SN74AHC1G09DBVR real image5868 SN74AHC1G09DBVR Real Image1 SN74AHC1G09DBVR Real Image2
Same model may have multiple batches, images only for reference.
SN74AHC1G09DBVR Real Image SN74AHC1G09DBVR real image5868 SN74AHC1G09DBVR Real Image1 SN74AHC1G09DBVR Real Image2
SN74AHC1G09DBVR Real Image SN74AHC1G09DBVR real image5868 SN74AHC1G09DBVR Real Image1 SN74AHC1G09DBVR Real Image2
Same model may have multiple batches, images only for reference.

SN74AHC1G09DBVR

Part No SN74AHC1G09DBVR
Manufacturer Texas Instruments
Catalog Logic - Gates and Inverters
Description IC GATE AND 1CH 2-INP SOT-23-5
Datasheet
SN74AHC1G09DBVR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Logic Type AND Gate
Number of Circuits 1
Number of Inputs 2
Features Open Drain
Supply Voltage - Operating 2 V to 5.5 V
Current - Quiescent (Max) 1μA
Current - Output High, Low -, 8mA
Logic Level - Low 0.5 V to 1.65 V
Logic Level - High 1.5 V to 3.85 V
Max Propagation Delay @ V, Max CL 7.5ns @ 5V, 50pF
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Case / Package SOT-23-5
Dimension SC-74A, SOT-753
Win Source Part Number 029736-SN74AHC1G09DBVR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SN74AHC1G09DBVR CAD Model

Description

The SN74AHC1G09DBVR is a high-quality semiconductor product from Texas Instruments, a renowned global semiconductor design and manufacturing company.

  • Gate Type: Single 2-input positive AND gate with open-drain outputs
  • Voltage Range: 2 to 5.5 volts
  • Maximum Input Voltage: 5.5V
  • Maximum Output Voltage: 5.5V
  • Maximum Operating Temperature: 85 degrees Celsius
  • Minimum Operating Temperature: -40 degrees Celsius
  • Series: SN74AHC1G09
  • Package: Compact SOT-23-5
  • Propagation Delay Time: 9.3ns @ 3.3V
  • Operating Supply Voltage: 2V to 5.5V
  • Supply Current: 20µA
