SN74ACT00DRG4 Quad 2-Input Positive-NAND Gates

The SN74ACT00DRG4 is a high-performance, quadruple 2-input positive-NAND gate integrated circuit from Texas Instruments, designed to operate with exceptional speed and reliability. This device is part of the 74ACT family, which is well-known for its advanced high-speed CMOS technology, offering both the speed of bipolar FET devices and the low power consumption of CMOS technology.

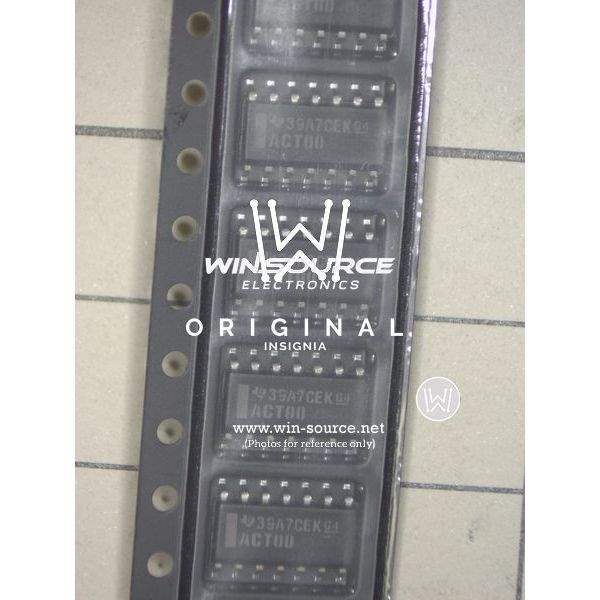

With its compact SOP (Small Outline Package), the SN74ACT00DRG4 is optimized for space-constrained applications. The device is provided in a 14-pin package, ensuring a minimal footprint on the PCB while delivering robust performance. It supports a wide operating voltage range from 4.5V to 5.5V, making it versatile for interfacing with various logic levels in digital systems.

The SN74ACT00DRG4 features a typical t_pd (propagation delay time) of just 8.5ns with a 5V supply, which translates to high-speed operation that is essential for modern digital circuits. Its inputs are TTL-compatible, allowing for easy integration into existing designs without the need for additional level-shifting components.

Each gate in the SN74ACT00DRG4 has two inputs and one output, and the device can be utilized in a wide array of digital applications, including logic function generators, digital signal processing, and complex gate implementations. Its low power consumption and high noise immunity are crucial for battery-operated and noise-sensitive electronic systems.

For enhanced system reliability, the SN74ACT00DRG4 features balanced propagation delays and output transition times. It is also characterized for operation from -40°C to 85°C, ensuring stable performance across a wide temperature range, suitable for industrial and automotive environments.

Overall, the SN74ACT00DRG4 from Texas Instruments is a reliable choice for designers looking to implement NAND gate functions in their digital circuits with high speed, low power, and reduced system noise. Its industry-standard package and pinout make it an easy drop-in replacement for existing designs or an excellent choice for new projects requiring a robust logic solution.
