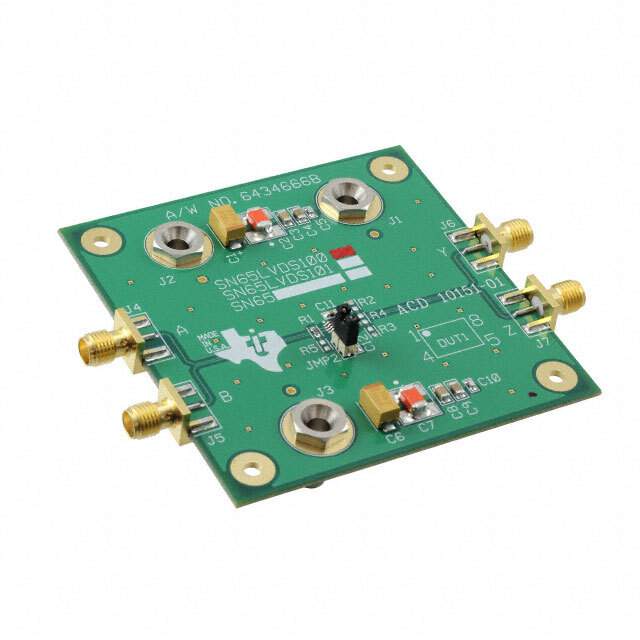

The SN65LVDS101EVM is an evaluation module designed to demonstrate the capabilities and performance of the SN65LVDS101 multi-point low-voltage differential signaling (M-LVDS) line driver and receiver from Texas Instruments. This evaluation module provides a robust platform for engineers and developers to explore the features of this advanced signaling technology, which is ideal for applications requiring high-speed data transmission over controlled impedance media of approximately 100 Ω.

The SN65LVDS101EVM showcases the SN65LVDS101 chip's ability to operate at signaling rates up to 200 Mbps over a wide temperature range, making it suitable for demanding industrial environments. The device adheres to the TIA/EIA-899 standard for M-LVDS, ensuring interoperability and reliability in multi-point data transmission systems.

Key features of the SN65LVDS101 include a low-voltage differential signaling interface, which minimizes electromagnetic interference (EMI) and power dissipation, and a fail-safe receiver that ensures a high logic level output when the inputs are left open, shorted, or terminated but idle. The module also highlights the device's ability to support half-duplex communication, allowing for the bidirectional flow of data on a single pair of wires, thereby reducing the complexity and cost of cabling.

The evaluation module comes with a user-friendly guide that provides detailed instructions on how to set up the board, as well as example applications to help users quickly get started with their design evaluations. With the SN65LVDS101EVM, designers can rapidly prototype systems and validate concepts, accelerating the development process for applications such as telecom infrastructure, data acquisition systems, and clock distribution networks.

Texas Instruments provides comprehensive technical support for the SN65LVDS101EVM, including datasheets, user manuals, and application notes, ensuring that users can maximize the potential of the evaluation module and the SN65LVDS101 device for their specific design needs.
