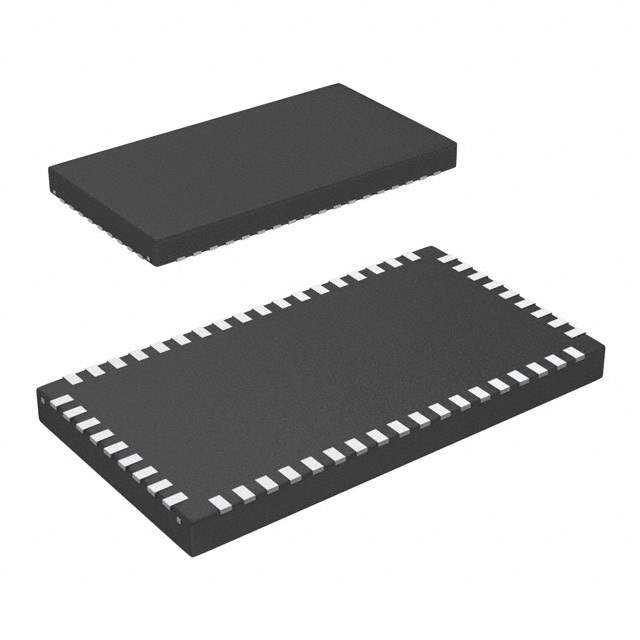

The DS100MB203SQE is a state-of-the-art signal conditioning and retiming repeater from Texas Instruments, designed to enhance the performance and reliability of high-speed data transmission. This innovative component is an integral part of modern data communication systems, particularly beneficial in applications that require long-distance data transmission with minimal signal degradation.

Key Features

• High-Speed Performance: The DS100MB203SQE is capable of supporting data rates up to 10.3125 Gbps per channel, making it suitable for a wide range of high-speed interfaces including 10 GbE, 8G Fibre Channel, and PCIe Gen1/Gen2/Gen3.
• Dual-Channel Operation: It features two bidirectional channels, allowing for simultaneous two-way communication, which is essential for today’s duplex communication systems.
• Signal Conditioning: The device includes advanced signal conditioning capabilities, such as input equalization, output de-emphasis, and retiming functionality, to combat signal degradation over long PCB traces or cables.
• Flexibility: Its programmable settings via SMBus or I2C interface ensure that it can be optimized for various applications and signal integrity requirements.
• Low Power Consumption: Designed with power efficiency in mind, the DS100MB203SQE maintains high performance while minimizing power consumption, an important consideration for energy-sensitive applications.
• Robust Design: The device is engineered to withstand harsh industrial environments, featuring built-in temperature and voltage sensors for real-time monitoring and protection.

Applications

The DS100MB203SQE is versatile and can be employed in a variety of applications, including:

• Data center and enterprise networking equipment
• High-speed backplane and cable extenders
• Storage systems and servers
• Telecommunication infrastructure
• Industrial control and automation systems

Technical Specifications

For detailed technical specifications, designers and engineers are encouraged to refer to the official datasheet provided by Texas Instruments. This document offers comprehensive information on electrical characteristics, pin configurations, package details, and application guidelines necessary for successful integration of the DS100MB203SQE into their systems.

In summary, the DS100MB203SQE from Texas Instruments is an essential component for ensuring high-speed data integrity and performance across a range of industrial and commercial applications. Its advanced features and robust design make it a reliable choice for system designers seeking to enhance their data communication solutions.
