Product Overview: SN65HVD74DR

The SN65HVD74DR is a robust differential transceiver component from Texas Instruments, designed to facilitate high-speed bi-directional communication on a single twisted-pair network. This device is a part of the industry-standard 3.3V RS-485 family and is optimized for balanced data transmission at signaling rates up to 50 Mbps.

Key Features

• High-Speed Data Transfer: Capable of operating at speeds up to 50 Mbps, the SN65HVD74DR is ideal for applications requiring fast data exchange over RS-485 networks.
• Low Power Consumption: With a 3.3V supply voltage, the device ensures efficient power usage, making it suitable for power-sensitive applications.
• Robust Protection: The transceiver is equipped with robust electrostatic discharge (ESD) protection, ensuring resilience in harsh electrical environments.
• Differential Output: Its differential output exceeds the requirements of the RS-485 specifications, ensuring reliable data transmission over long cable runs.
• Thermal Shutdown: The built-in thermal shutdown feature prevents damage from overheating, enhancing the device's reliability and longevity.

Applications

The SN65HVD74DR is versatile and can be used in a variety of applications, including but not limited to:

• Industrial Control Systems
• Building Automation
• Networked Security Systems
• Telecommunications Infrastructure

Package and Quality

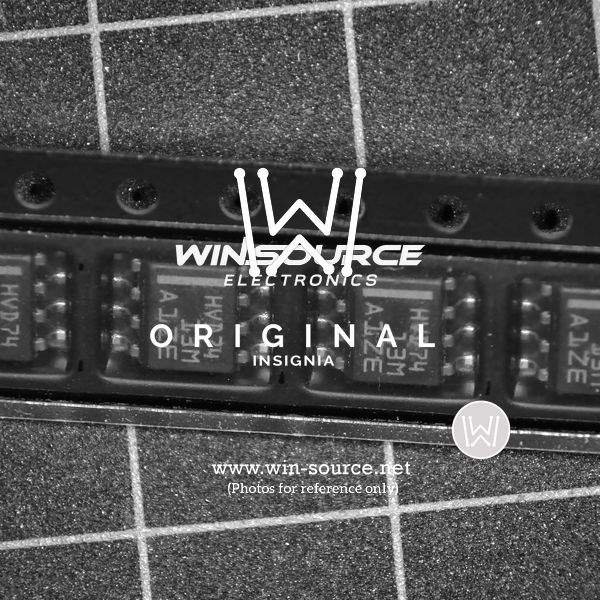

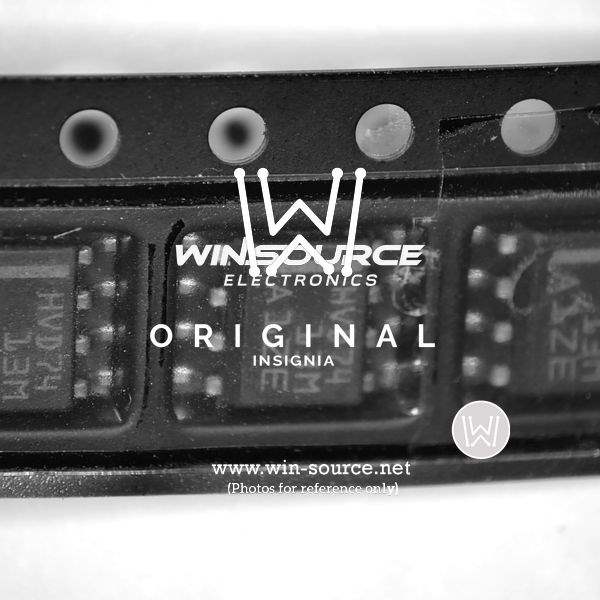

This transceiver is available in an 8-pin SOIC package, providing a compact footprint for space-constrained applications. Texas Instruments ensures high manufacturing standards, offering a product that is both reliable and consistent in performance.

Conclusion

The SN65HVD74DR from Texas Instruments is an excellent choice for designers looking for a high-speed, low-power, and robust RS-485 transceiver. Its combination of speed, power efficiency, and protection features make it an essential component for modern communication systems requiring dependable and efficient data transfer.
