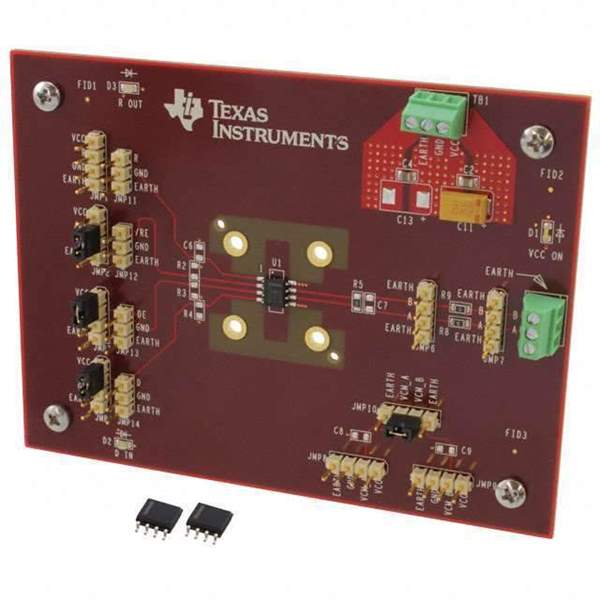

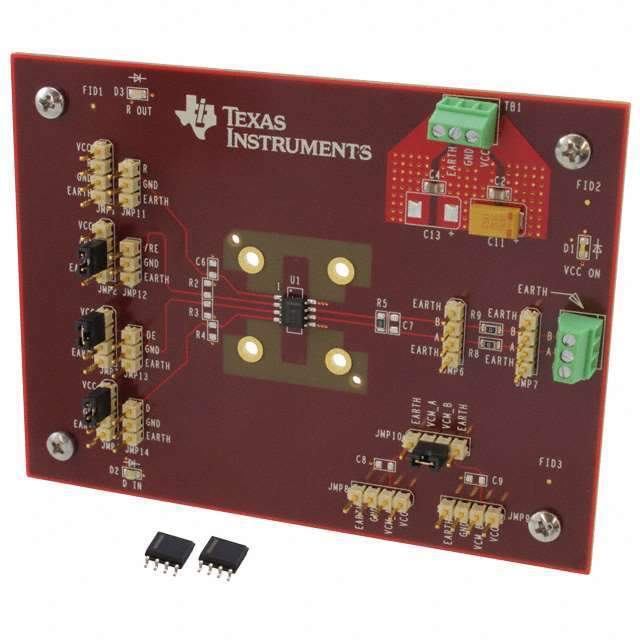

Introducing the SN65HVD72EVM from Texas Instruments

The SN65HVD72EVM is a comprehensive evaluation module designed by Texas Instruments to showcase the capabilities and robustness of the SN65HVD72 IC, a 3.3V-powered RS-485 transceiver. This evaluation module is an essential tool for engineers and developers who wish to test the functionalities and performance of the transceiver in a variety of communication applications.

The SN65HVD72 IC itself is part of the industry-leading SN65HVD7x series, known for its low power consumption and high immunity to electromagnetic interference. The device is characterized by its half-duplex communication capability, which allows for bidirectional data transmission over a single pair of wires, making it an ideal choice for multi-point networks within industrial environments.

Key Features of the SN65HVD72EVM

• Easy-to-Use Interface: The evaluation module comes with a user-friendly interface, which includes clear markings and test points for convenient access to the transceiver's signal pins.
• Flexible Power Options: It can be powered through the provided connector, making it versatile for use in different power configurations and environments.
• On-board Protection: The module includes robust protection features such as transient voltage suppression (TVS) diodes, ensuring the transceiver's resilience against voltage spikes and surges.
• Signal Integrity: Designed with impedance-matched traces, the SN65HVD72EVM ensures optimal signal integrity for reliable data transmission even in harsh industrial settings.

The evaluation module is also an excellent platform for learning and experimentation. It allows users to explore the SN65HVD72's integrated features such as its wide common-mode voltage range, thermal shutdown, and receiver failsafe. These features provide enhanced performance and reliability that are critical for industrial communication networks.

Whether you're developing applications for factory automation, motor control, or building automation, the SN65HVD72EVM from Texas Instruments provides a solid foundation for testing and validating your designs with the SN65HVD72 RS-485 transceiver. Its robust design and comprehensive feature set make it an indispensable tool for any professional working with RS-485 communication protocols.
