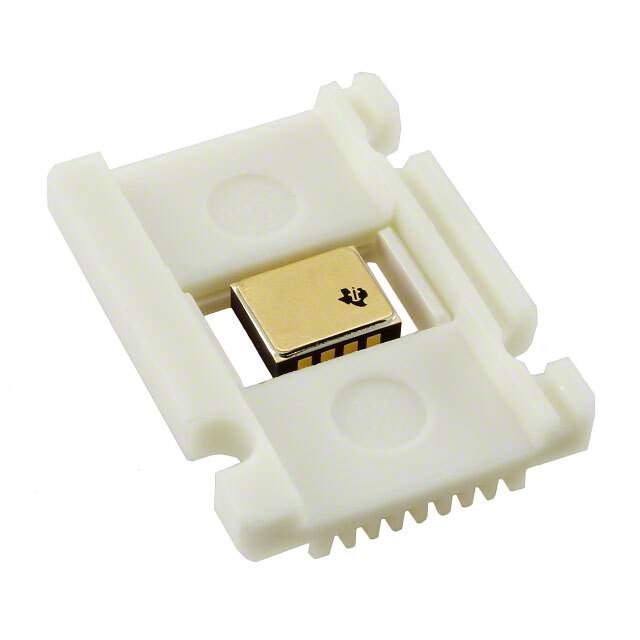

Product Overview: SN65HVD233SHKJ

The SN65HVD233SHKJ is a robust, high-performance CAN (Controller Area Network) transceiver module from the industry-leading semiconductor manufacturer, Texas Instruments. Designed to facilitate communication in automotive and industrial applications, this transceiver ensures reliable data transmission and reception over CAN networks, which are pivotal in systems requiring high levels of data integrity and error-free operations.

Key Features

• Compatibility: Fully compatible with the ISO 11898-2 standard, the SN65HVD233SHKJ is designed to operate in high-speed CAN systems up to 1 Mbps. It is also interoperable with existing CAN components, ensuring seamless integration into current designs.
• Bus-Pin Protection: The device provides extensive bus-pin fault protection exceeding ±36 V, making it robust against harsh electrical environments and improving system reliability.
• Low Power Mode: Featuring a low-power standby mode, the transceiver supports power-saving strategies crucial for energy-sensitive applications, reducing the overall power consumption of the system.
• Differential Output: The transceiver's differential output capability enhances the signal integrity over long cable runs and in noisy environments, ensuring consistent performance throughout the network.
• Thermal Shutdown: An integrated thermal shutdown feature prevents the device from overheating, thereby safeguarding the transceiver and the system it operates within.

Applications

Thanks to its robust design and reliable performance, the SN65HVD233SHKJ is an excellent choice for various applications, including but not limited to:

• Automotive networks such as body control modules, powertrain systems, and infotainment systems.
• Industrial automation systems where distributed control is necessary.
• Medical equipment with a need for reliable communication between devices.
• Marine and avionics communication systems that require stringent data integrity.

Quality and Support

As with all Texas Instruments products, the SN65HVD233SHKJ is manufactured to the highest quality standards. Customers can expect comprehensive technical support, including detailed datasheets, application notes, and design resources, to facilitate the implementation of this transceiver in their projects. Texas Instruments' commitment to quality ensures that the SN65HVD233SHKJ not only meets but exceeds the expectations for high-performance CAN communication solutions.
