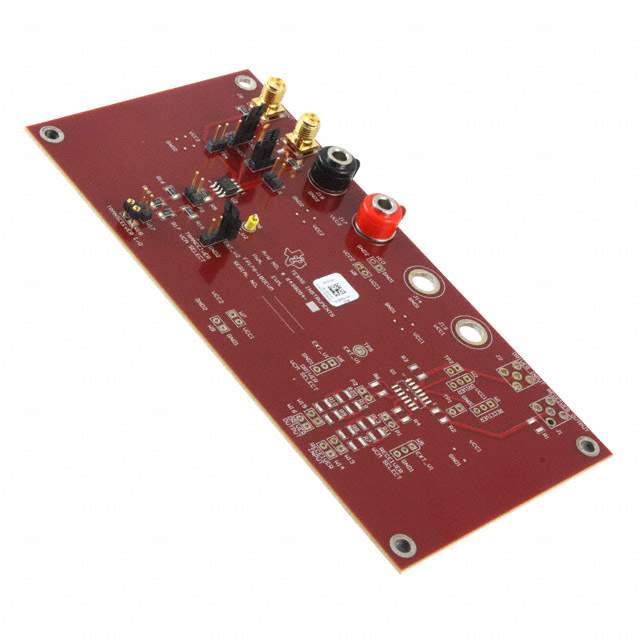

SN65HVD22EVM Evaluation Module from Texas Instruments

The SN65HVD22EVM is an invaluable tool for professionals and enthusiasts alike who are looking to explore the capabilities of the SN65HVD22 RS-485 transceiver. Manufactured by Texas Instruments, a leader in semiconductor solutions, this evaluation module (EVM) is designed to showcase the functionality and robustness of the SN65HVD22 device, which is well-suited for industrial applications requiring high-speed data communication over long distances.

The SN65HVD22 transceiver integrated into this EVM operates over a wide range of supply voltages, from 3.3V to 5V, making it versatile for various system designs. It is capable of data transmission rates up to 20 Mbps and features a low power consumption mode, which is crucial for energy-sensitive projects. The half-duplex transceiver also incorporates fail-safe receivers that maintain a high-impedance state in the absence of input signals, thereby preventing false outputs.

One of the key attributes of the SN65HVD22EVM is its robust protection features. The transceiver is equipped with bus-pin electrostatic discharge (ESD) protection exceeding 15 kV and is characterized for operation from -40°C to 85°C, ensuring reliable performance in harsh environmental conditions. Its thermal shutdown and open-circuit fail-safe design provide additional layers of security for the connected systems.

The evaluation module includes onboard connectors that facilitate easy interfacing with test equipment or a user's existing prototype. Users can quickly evaluate the transceiver's performance in their own system configurations, speeding up the development process. The EVM also comes with jumper pins that allow for flexible control of the device's features, including enabling and disabling the driver and receiver.

For those looking to develop applications such as industrial control, building automation, or networked sensors, the SN65HVD22EVM provides a convenient and cost-effective solution. It simplifies the process of testing the SN65HVD22's features and ensures that designers can confidently integrate the transceiver into their final product designs.

Overall, the SN65HVD22EVM from Texas Instruments is an essential asset for anyone needing to test the performance and resilience of RS-485 communication in real-world applications.
