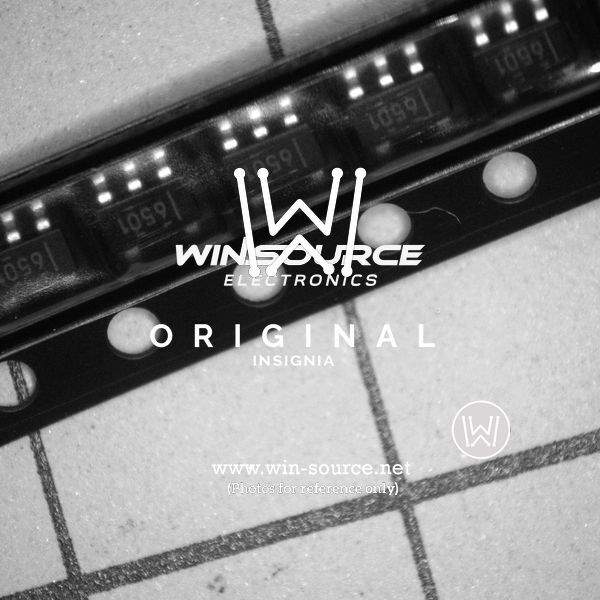

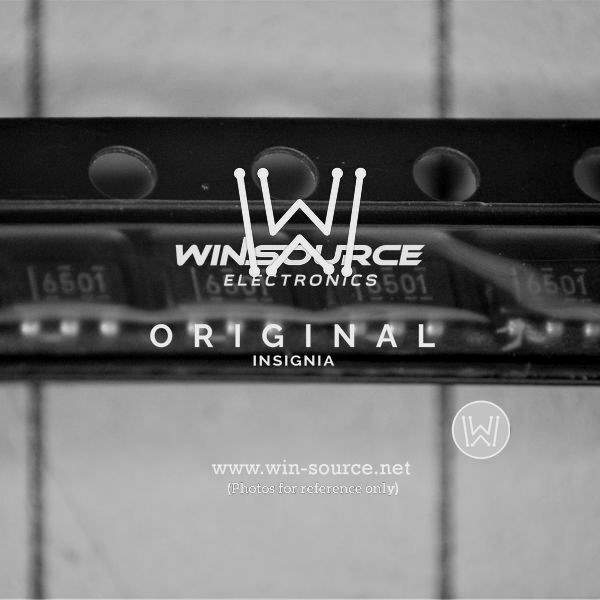

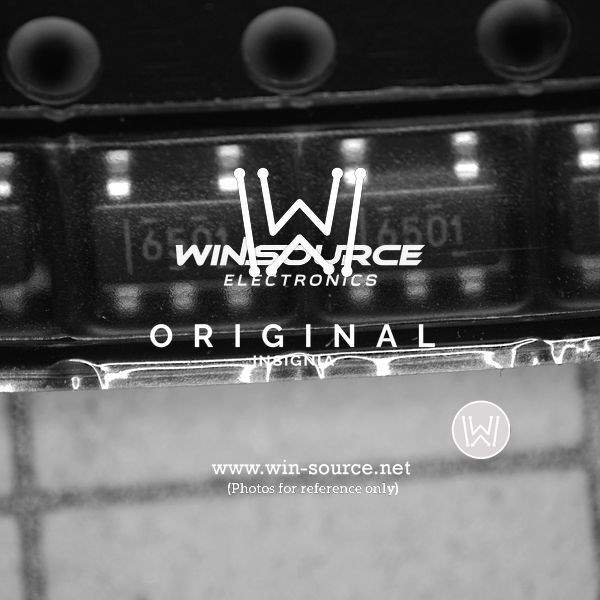

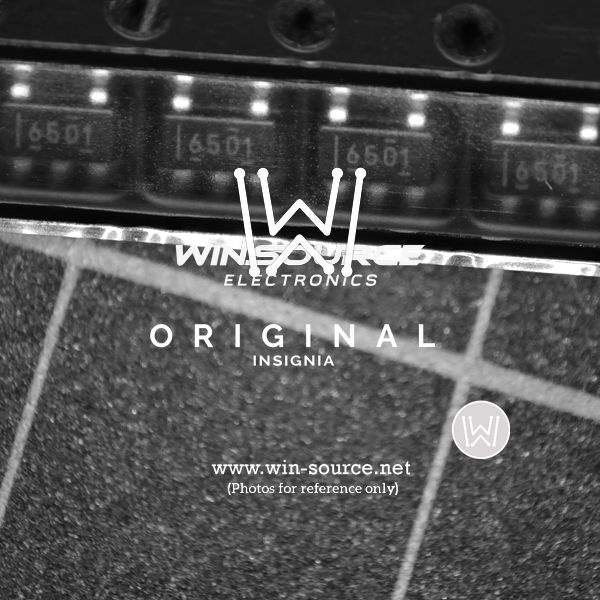

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Applications Transformer Driver
Operating Supply Current 300μA
Supply Voltage - Operating 3 V to 5.5 V
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Case / Package SOT-23-5
Win Source Part Number 029492-SN6501DBVR
Family Name SN6501
Introduction Date February 01, 2012
ECCN EAR99
Country of Origin China, United Statesof America
Halogen Free Compliant
Estimated EOL Date 2027
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SN6501DBVR CAD Model

Description

Product SN6501DBVR from Texas Instruments is a high-quality, reliable transformer driver that is specifically designed for small-form-factor, isolated power supplies.

  • Type: Push-pull transformer driver
  • Frequency Range: 350 kHz to 410 kHz
  • Features: Internal oscillator
  • Application Examples: Isolated interface power supplies, low power gate driver, and auxiliary supplies
  • Quiescent Current: 5.2 mA
  • Operating Temperature Range: -40°C to 125°C
  • Protection: Thermal shutdown and short-circuit protection
  • Package: 6-pin SOT-23 package
  • Compliance: RoHS compliant and free from lead, halogen, and Antimony (Sb)
  • Output Peak Current: Up to 350 mA
  • Operation: Low-noise
