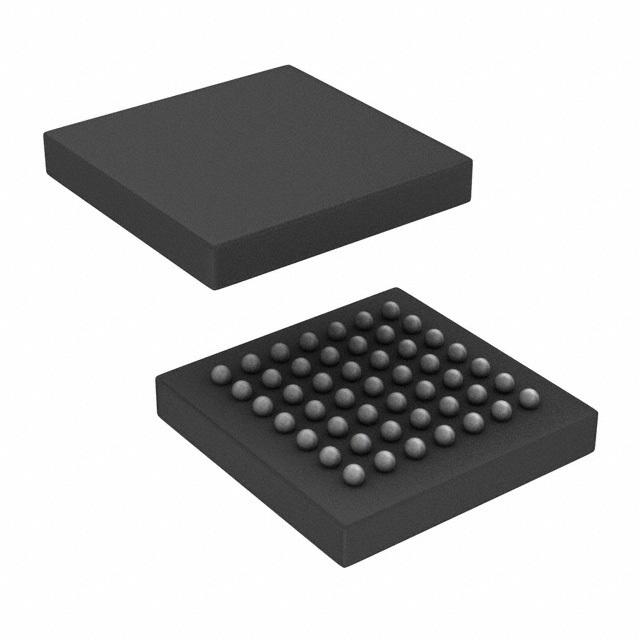

The SCANSTA111SM/NOPB from Texas Instruments is a sophisticated, multi-channel scan bridge and bus switch designed for applications that require efficient boundary-scan testing and interconnectivity solutions. This device is part of the SCANSTA series, which is renowned for enhancing test coverage and reducing the complexity and cost of testing printed circuit boards (PCBs).

Key Features

• Advanced Boundary-Scan Support: The SCANSTA111SM/NOPB is equipped with features that support IEEE 1149.1 (JTAG) boundary-scan testing, making it easier to detect manufacturing defects on PCBs without requiring physical access for test probes.
• Multiple Test Access Ports (TAPs): This device can control up to four independent TAPs, allowing for simultaneous testing of multiple PCBs or sections of a complex system, which significantly improves test throughput.
• Bus Switching Capabilities: With its integrated bus switch matrix, the SCANSTA111SM/NOPB can route test data between different TAPs and system buses, enhancing the flexibility and efficiency of the test setup.
• Reduced Signal Loading: The device minimizes signal loading on the bus lines, which helps to maintain signal integrity and system performance during testing.
• Low Power Consumption: Designed with power efficiency in mind, it operates with a minimal power draw, making it suitable for eco-conscious designs and applications where power management is critical.

Applications

The SCANSTA111SM/NOPB is ideal for a wide range of applications, including:

• Telecommunications
• Networking equipment
• Servers and data centers
• Industrial control systems
• Aerospace and defense systems

Quality and Reliability

Texas Instruments is committed to delivering high-quality and reliable components. The SCANSTA111SM/NOPB is no exception, and it is designed to meet the stringent requirements of industrial and mission-critical applications. It is available in a surface-mount package and is lead-free and RoHS compliant, ensuring compatibility with modern environmental standards.

With its robust feature set and Texas Instruments' reputation for quality, the SCANSTA111SM/NOPB is an excellent choice for designers looking to implement effective boundary-scan testing and bus switching in their systems.
