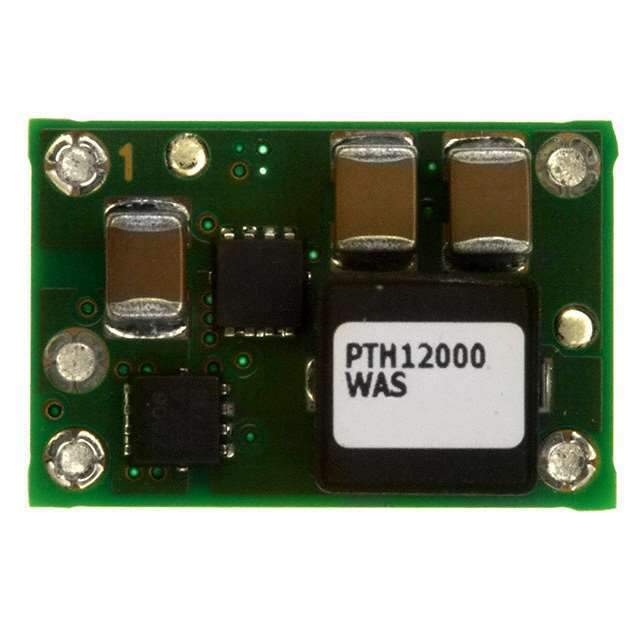

The PTH12000WAS series from Texas Instruments is a cutting-edge line of non-isolated power modules designed to deliver exceptional performance and reliability for a wide range of applications. With its high-efficiency operation and advanced thermal management, this series stands out as a premier solution for designers looking to optimize their power systems.

Key Features:

• Wide Input Voltage Range: These modules operate over an input voltage range of 10.8V to 13.2V, making them versatile for various applications.
• Adjustable Output Voltage: The output voltage can be precisely adjusted from 0.9V to 5.5V, allowing for flexibility in powering different circuit components.
• High Output Current: The PTH12000WAS series is capable of delivering up to 12A of output current, ensuring sufficient power for demanding loads.
• Efficient Power Conversion: With an efficiency of up to 95%, these modules ensure minimal power loss and reduced heat generation.
• Thermal Shutdown: An integrated thermal shutdown feature protects the module from overheating, enhancing its reliability and lifespan.
• On/Off Inhibit: This feature allows the user to control the power module operation via an external signal, providing additional flexibility and power-saving capabilities.
• Pre-Bias Startup: The modules are capable of handling pre-bias startup conditions, ensuring safe and reliable operation even when the output is preloaded.

Applications:

The PTH12000WAS series is ideal for a variety of applications, including:

• Telecommunications equipment
• Computing and data storage systems
• Industrial controls
• Networking infrastructure

With its robust design and advanced features, the PTH12000WAS series from Texas Instruments is an excellent choice for engineers looking for a high-performance, non-isolated power module. Whether it's for integration into complex systems or for upgrading existing designs, this series provides the efficiency, flexibility, and reliability needed to meet the demands of modern electronic devices.
