Same model may have multiple batches, images only for reference.

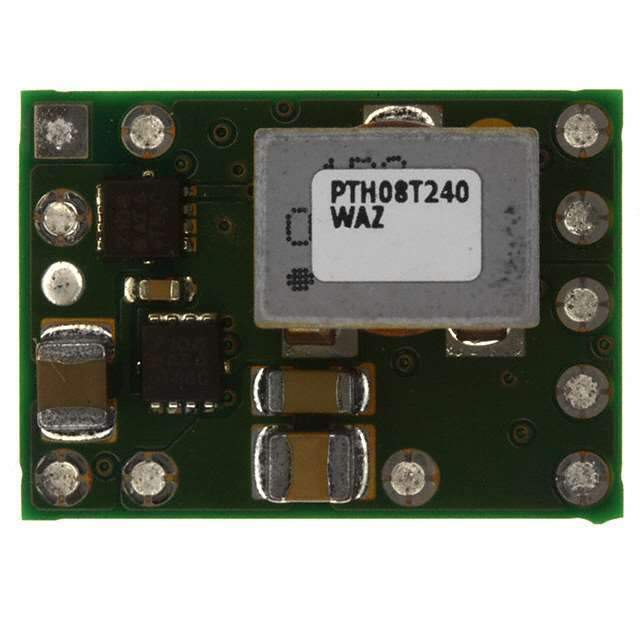

PTH08T240WAZT Real Image
Same model may have multiple batches, images only for reference.

PTH08T240WAZT

Part No PTH08T240WAZT
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description MODULE PIP 14VIN 10A ADJ SMD
Datasheet
PTH08T240WAZT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series PTH08T240W
Packaging Reel(TR)
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 14V
Voltage - Output 1 0.69 ~ 5.5 V
Current - Output (Max) 10A
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, UVLO
Mounting Style SMD/SMT
Package 11-SMD Module
Size / Dimension 0.87" L x 0.62" W x 0.36" H (22.1mm x 15.7mm x 9.1mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 95%
Power (Watts) - Max 55W
Win Source Part Number 126719-PTH08T240WAZT
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PTH08T240WAZT CAD Model

Description

The PTH08T240WAZT is a high-performance, non-isolated power module from Texas Instruments (TI), a renowned global semiconductor design and manufacturing company.

  • Output Current: 50-A rated
  • Input Voltage Range: 4.5 V to 14 V
  • Adjustable Output Voltage Range: 0.69 V to 5.5 V
  • Auto-Track Sequencing: Yes
  • Efficiency: Up to 96%
  • Over-Temperature Protection: Yes
  • Output Over-Current Protection: Yes
  • Input Under-Voltage Lockout: Yes
  • Package: Through-hole
  • On/Off Inhibit: Yes
  • Pre-Bias Startup: Yes
  • Adjustable Under-Voltage Lockout: Yes
  • Differential Remote Sense: Yes
