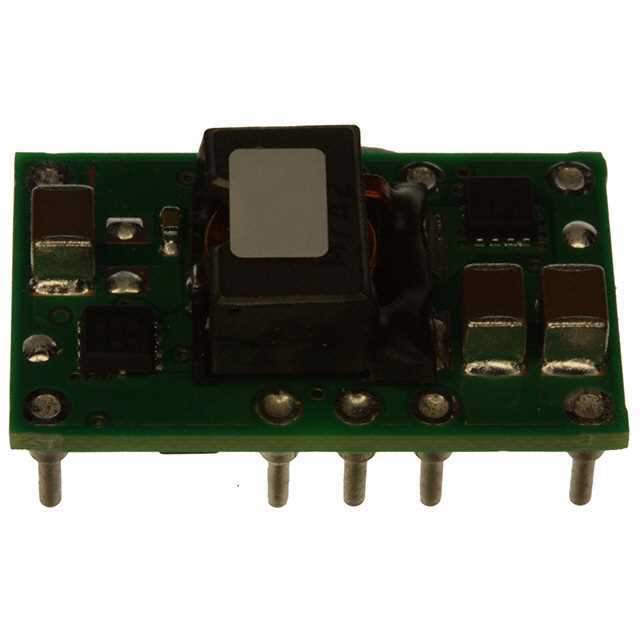

Product Overview: PTH05060YAH from Texas Instruments

The PTH05060YAH is an innovative power module from Texas Instruments (TI), designed to deliver exceptional performance and flexibility for today's demanding power supply applications. As a member of TI's extensive portfolio of power management solutions, this module stands out with its compact size, high efficiency, and ease of use.

Key Features

• Wide Input Voltage Range: The PTH05060YAH operates over a broad input voltage range of 10.8V to 13.2V, making it suitable for a variety of intermediate bus architectures and industry-standard voltages.
• Adjustable Output Voltage: This module provides an adjustable output voltage from 0.8V to 5.5V, allowing for high flexibility and compatibility with different downstream loads and applications.
• High Efficiency: With an efficiency of up to 95%, this power module ensures minimal power loss and heat generation, thereby reducing the need for complex thermal management systems.
• Integrated Inductor: The PTH05060YAH includes an integrated inductor, which simplifies the design and reduces external component count, saving both space and cost.
• Output Current: It delivers up to 6A of output current, suitable for powering a wide range of digital ICs including microprocessors, FPGAs, and DSPs.
• Thermal Performance: The module is designed with excellent thermal performance in mind, featuring an operating temperature range of -40°C to 85°C.
• Protection Features: It includes a comprehensive set of protection features such as under-voltage lockout, over-current protection, and thermal shutdown, ensuring reliable operation under adverse conditions.

Applications

The PTH05060YAH is ideal for a wide range of applications across various industries. Its versatility makes it suitable for telecommunications, industrial systems, computing infrastructure, and anywhere a high-performance, compact, and reliable power supply is required.

Conclusion

In summary, the PTH05060YAH from Texas Instruments is a high-performance power module that offers designers a combination of flexibility, efficiency, and reliability. Its advanced features and protective measures ensure that it can meet the needs of even the most demanding power supply requirements.
