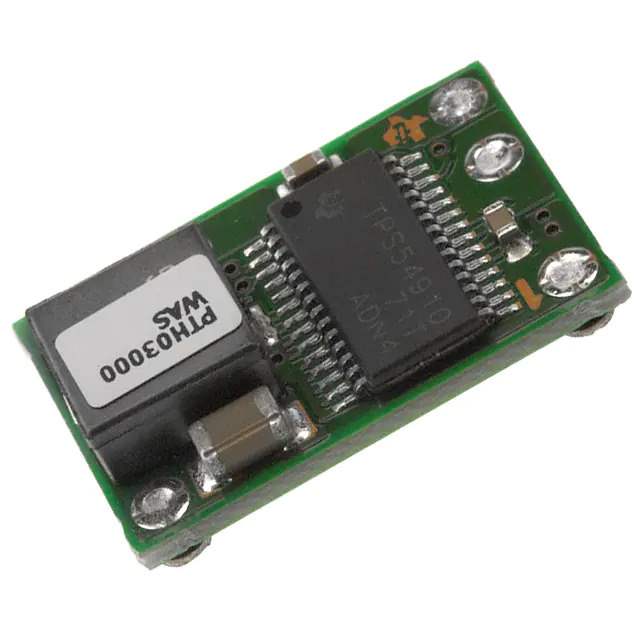

The PTH03000WAZ is a high-performance, non-isolated DC/DC converter module from Texas Instruments. This power module is designed to offer a flexible, efficient, and compact power solution for a wide range of applications. With its adjustable output voltage and high efficiency, the PTH03000WAZ is an excellent choice for designers looking to simplify their power supply design.

Key Features

• Wide Input Voltage Range: The module operates over an input voltage range of 3.0V to 3.6V, making it versatile for various applications.
• Adjustable Output Voltage: Users can adjust the output voltage from 0.8V to 2.5V, providing flexibility for different system requirements.
• High Efficiency: With an efficiency of up to 95%, the PTH03000WAZ ensures minimal power loss and is suitable for energy-sensitive designs.
• High Output Current: The module can deliver up to 3A of continuous output current, accommodating high power demands.
• Power Good Signal: An integrated power good signal indicates when the output is within regulation, which aids in system monitoring and sequencing.
• Thermal Protection: Built-in over-temperature protection safeguards the module from damage due to excessive heat.
• Compact Size: The small footprint of the module allows for easy integration into space-constrained designs.

Applications

The PTH03000WAZ is suitable for a broad range of applications, including but not limited to:

• Telecommunications equipment
• Networking hardware
• Servers and storage systems
• Industrial controls
• Test equipment

Quality and Reliability

Texas Instruments is known for its commitment to quality and reliability, and the PTH03000WAZ is no exception. It is built to meet the high standards required by industrial and commercial applications, ensuring long-term performance and durability.

Conclusion

The PTH03000WAZ from Texas Instruments is a robust and reliable DC/DC converter module that offers design flexibility, high efficiency, and a compact size. Whether for new designs or upgrading existing power systems, this module provides an efficient solution to meet a variety of power requirements.
